Pure C interface for C++ API of SuperTinyKernel (STK). More...

Classes
struct	stk_mutex_mem_t
	Opaque memory container for a Mutex instance. More...
struct	stk_spinlock_mem_t
	Opaque memory container for SpinLock object. More...
struct	stk_cv_mem_t
	Opaque memory container for a ConditionVariable instance. More...
struct	stk_event_mem_t
	Opaque memory container for an Event instance. More...
struct	stk_sem_mem_t
	Opaque memory container for a Semaphore instance. More...
struct	stk_ef_mem_t
	Opaque memory container for an EventFlags instance. More...
struct	stk_pipe_mem_t
	Opaque memory container for a Pipe instance. More...
struct	stk_rwmutex_mem_t
	Opaque memory container for an RWMutex instance. More...

Macros
#define	STK_C_KERNEL_MAX_TASKS (4)
	Maximum number of tasks per kernel instance (default: 4).
#define	STK_C_CPU_COUNT (1)
	Number of kernel instances / CPU cores supported (default: 1).
#define	STK_SYNC_DEBUG_NAMES (0)
	Enable names for synchronization primitives for debugging/tracing purpose.
#define	STK_C_ASSERT(e)
	Assertion macro used inside STK C bindings.
#define	__stk_c_stack_attr
	Stack attribute (applies required alignment).
#define	STK_PERIODICITY_DEFAULT (1000U)
	Default tick period (1 ms).
#define	STK_WAIT_INFINITE (INT32_MAX)
	Infinite timeout constant.
#define	STK_NO_WAIT (0)
	No timeout constant.
#define	STK_TLS_GET(type)
	Typed helper for getting TLS value.
#define	STK_TLS_SET(ptr)
	Typed helper for setting TLS value.
#define	STK_MUTEX_IMPL_SIZE (10 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))
	A memory size (multiples of stk_word_t) required for Mutex instance.
#define	STK_SPINLOCK_IMPL_SIZE (1)
	A memory size (multiples of stk_word_t) required for SpinLock instance.
#define	STK_CV_IMPL_SIZE (7 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))
	A memory size (multiples of stk_word_t) required for ConditionVariable instance.
#define	STK_EVENT_IMPL_SIZE (8 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))
	A memory size (multiples of stk_word_t) required for Event instance.
#define	STK_SEM_IMPL_SIZE (8 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))
	A memory size (multiples of stk_word_t) required for Semaphore instance.
#define	STK_EF_OPT_WAIT_ANY (0x00000000U)
	Options bitmask constants for stk_ef_wait() / stk_ef_trywait().
#define	STK_EF_OPT_WAIT_ALL (0x00000001U)
#define	STK_EF_OPT_NO_CLEAR (0x00000002U)
#define	STK_EF_ERROR_PARAMETER (0x80000001U)
	Return-value error sentinels (bit 31 set indicates an error).
#define	STK_EF_ERROR_TIMEOUT (0x80000002U)
#define	STK_EF_ERROR_ISR (0x80000004U)
#define	STK_EF_ERROR_MASK (0x80000000U)
#define	STK_EF_IMPL_SIZE (STK_CV_IMPL_SIZE + 1 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))
	A memory size (multiples of stk_word_t) required for EventFlags instance.
#define	STK_PIPE_SIZE 16
	Size of the Pipe: Pipe<stk_word_t, STK_PIPE_SIZE>.
#define	STK_PIPE_IMPL_SIZE ((27 + (STK_SYNC_DEBUG_NAMES ? 3 : 0)) + STK_PIPE_SIZE)
	A memory size (multiples of stk_word_t) required for Pipe instance.
#define	STK_RWMUTEX_IMPL_SIZE (17 + (STK_SYNC_DEBUG_NAMES ? 3 : 0))
	A memory size (multiples of stk_word_t) required for RWMutex instance.

Typedefs
typedef uintptr_t	stk_word_t
	CPU register type.
typedef stk_word_t	stk_tid_t
	Task id.
typedef struct stk_kernel_t	stk_kernel_t
	Opaque handle to a kernel instance.
typedef struct stk_task_t	stk_task_t
	Opaque handle to a task instance.
typedef void(*	stk_task_entry_t) (void *arg)
	Task entry point function type.
typedef enum _EKernelState	EKernelState
	Kernel state.
typedef struct stk_mutex_mem_t	stk_mutex_mem_t
	Opaque memory container for a Mutex instance.
typedef struct stk_mutex_t	stk_mutex_t
	Opaque handle to a Mutex instance.
typedef struct stk_spinlock_t	stk_spinlock_t
	Opaque handle to a SpinLock instance.
typedef struct stk_cv_mem_t	stk_cv_mem_t
	Opaque memory container for a ConditionVariable instance.
typedef struct stk_cv_t	stk_cv_t
	Opaque handle to a Condition Variable instance.
typedef struct stk_event_mem_t	stk_event_mem_t
	Opaque memory container for an Event instance.
typedef struct stk_event_t	stk_event_t
	Opaque handle to an Event instance.
typedef struct stk_sem_mem_t	stk_sem_mem_t
	Opaque memory container for a Semaphore instance.
typedef struct stk_sem_t	stk_sem_t
	Opaque handle to a Semaphore instance.
typedef struct stk_ef_mem_t	stk_ef_mem_t
	Opaque memory container for an EventFlags instance.
typedef struct stk_ef_t	stk_ef_t
	Opaque handle to an EventFlags instance.
typedef struct stk_pipe_mem_t	stk_pipe_mem_t
	Opaque memory container for a Pipe instance.
typedef struct stk_pipe_t	stk_pipe_t
	Opaque handle to a Pipe instance.
typedef struct stk_rwmutex_mem_t	stk_rwmutex_mem_t
	Opaque memory container for an RWMutex instance.
typedef struct stk_rwmutex_t	stk_rwmutex_t
	Opaque handle to an RWMutex instance.

Enumerations
enum	_EKernelState { STK_KERNEL_STATE_INACTIVE = 0 , STK_KERNEL_STATE_READY = 1 , STK_KERNEL_STATE_RUNNING = 2 }
	Kernel state. More...

Functions
stk_kernel_t *	stk_kernel_create (uint8_t core_nr)
	Create kernel.
void	stk_kernel_init (stk_kernel_t *k, uint32_t tick_period_us)
	Initialize kernel with given tick period.
void	stk_kernel_add_task (stk_kernel_t k, stk_task_t task)
	Add task to non-HRT kernel (static or dynamic).
void	stk_kernel_add_task_hrt (stk_kernel_t k, stk_task_t task, int32_t periodicity_ticks, int32_t deadline_ticks, int32_t start_delay_ticks)
	Add task with HRT timing parameters (HRT kernels only).
void	stk_kernel_remove_task (stk_kernel_t k, stk_task_t task)
	Remove finished task from dynamic kernel.
void	stk_kernel_start (stk_kernel_t *k)
	Start the scheduler - never returns.
EKernelState	stk_kernel_get_state (const stk_kernel_t *k)
	Get state of the scheduler.
bool	stk_kernel_is_schedulable (const stk_kernel_t *k)
	Test whether currently configured task set is schedulable.
stk_task_t *	stk_task_create_privileged (stk_task_entry_t entry, void arg, stk_word_t stack, uint32_t stack_size)
	Create privileged-mode (kernel-mode) task.
stk_task_t *	stk_task_create_user (stk_task_entry_t entry, void arg, stk_word_t stack, uint32_t stack_size)
	Create user-mode task.
void	stk_task_set_weight (stk_task_t *task, uint32_t weight)
	Set task weight (used only by Smooth Weighted Round Robin).
void	stk_task_set_priority (stk_task_t *task, uint8_t priority)
	Set task priority (used only by Fixed Priority scheduler).
void	stk_task_set_id (stk_task_t *task, uint32_t tid)
	Assign application-defined task ID (for tracing/debugging).
void	stk_task_set_name (stk_task_t task, const char tname)
	Assign human-readable task name (for tracing/debugging).

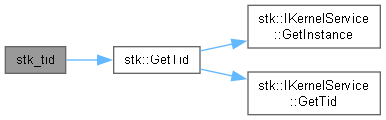

stk_tid_t	stk_tid (void)
	Returns current task/thread ID (the value set by stk_task_set_id).
int64_t	stk_ticks (void)
	Returns number of ticks elapsed since kernel start.

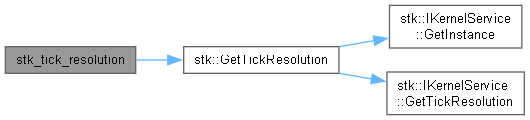

int32_t	stk_tick_resolution (void)
	Returns how many microseconds correspond to one kernel tick.
int64_t	stk_ticks_from_ms (int64_t msec)
	Get ticks from milliseconds using current kernel tick resolution.
static int64_t	stk_ticks_from_ms_r (int64_t msec, int32_t resolution)
	Get ticks from milliseconds using an explicit tick resolution.

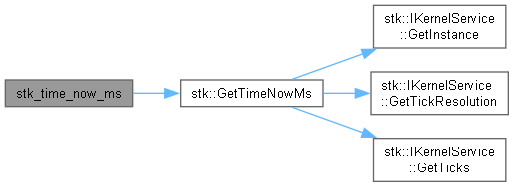

int64_t	stk_time_now_ms (void)
	Returns current time in milliseconds since kernel start.
void	stk_delay (uint32_t ticks)
	Busy-wait delay (other tasks continue to run).
void	stk_delay_ms (uint32_t ms)
	Busy-wait delay (other tasks continue to run).
void	stk_sleep (uint32_t ticks)
	Put current task to sleep (non-HRT kernels only).

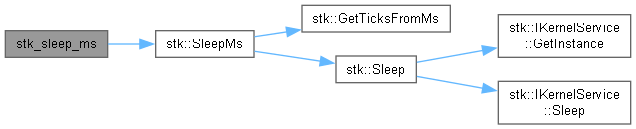

void	stk_sleep_ms (uint32_t ms)
	Put current task to sleep (non-HRT kernels only).
void	stk_sleep_until (int64_t ts)
	Put current task to sleep (non-HRT kernels only).
void	stk_yield (void)
	Voluntarily give up CPU to another ready task (cooperative yield).
void	stk_kernel_destroy (stk_kernel_t *k)
	Destroy dynamic kernel instance (only when not running).
void	stk_task_destroy (stk_task_t *task)
	Destroy dynamically created task object.
void *	stk_tls_get (void)
	Get thread-local pointer (platform-specific slot).
void	stk_tls_set (void *ptr)
	Set thread-local pointer.
void	stk_critical_section_enter (void)
	Enter critical section — disable context switches on current core.
void	stk_critical_section_exit (void)
	Leave critical section — re-enable context switches.
stk_mutex_t *	stk_mutex_create (stk_mutex_mem_t *memory, uint32_t memory_size)
	Create a Mutex (using provided memory).
void	stk_mutex_destroy (stk_mutex_t *mtx)
	Destroy a Mutex.
void	stk_mutex_lock (stk_mutex_t *mtx)
	Lock the mutex. Blocks until available.
bool	stk_mutex_trylock (stk_mutex_t *mtx)
	Try locking the mutex. Does not block if already locked.
void	stk_mutex_unlock (stk_mutex_t *mtx)
	Unlock the mutex.
bool	stk_mutex_timed_lock (stk_mutex_t *mtx, int32_t timeout)
	Try to lock the mutex with a timeout.
stk_spinlock_t *	stk_spinlock_create (stk_spinlock_mem_t *memory, uint32_t memory_size)
	Create a recursive SpinLock.
void	stk_spinlock_destroy (stk_spinlock_t *lock)
	Destroy the SpinLock.
void	stk_spinlock_lock (stk_spinlock_t *lock)
	Acquire the SpinLock (recursive).

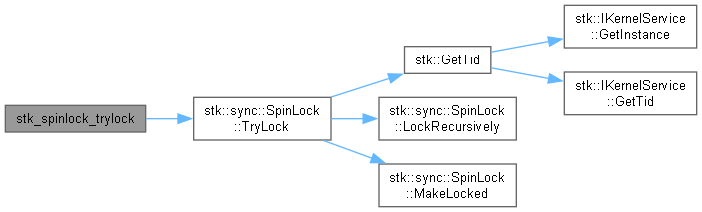

bool	stk_spinlock_trylock (stk_spinlock_t *lock)
	Attempt to acquire the SpinLock immediately.

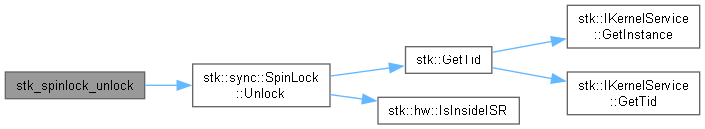

void	stk_spinlock_unlock (stk_spinlock_t *lock)
	Release the SpinLock.
stk_cv_t *	stk_cv_create (stk_cv_mem_t *memory, uint32_t memory_size)
	Create a Condition Variable (using provided memory).
void	stk_cv_destroy (stk_cv_t *cv)
	Destroy a Condition Variable.

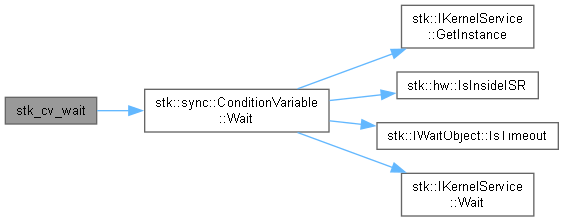

bool	stk_cv_wait (stk_cv_t cv, stk_mutex_t mtx, int32_t timeout)
	Wait for a signal on the condition variable.
void	stk_cv_notify_one (stk_cv_t *cv)
	Wake one task waiting on the condition variable.
void	stk_cv_notify_all (stk_cv_t *cv)
	Wake all tasks waiting on the condition variable.
stk_event_t *	stk_event_create (stk_event_mem_t *memory, uint32_t memory_size, bool manual_reset)
	Create an Event (using provided memory).
void	stk_event_destroy (stk_event_t *ev)
	Destroy an Event.
bool	stk_event_wait (stk_event_t *ev, int32_t timeout)
	Wait for the event to become signaled.
bool	stk_event_trywait (stk_event_t *ev)
	Wait for the event to become signaled.
void	stk_event_set (stk_event_t *ev)
	Set the event to signaled state.
void	stk_event_reset (stk_event_t *ev)
	Reset the event to non-signaled state.
void	stk_event_pulse (stk_event_t *ev)
	Pulse the event (signal then immediately reset).
stk_sem_t *	stk_sem_create (stk_sem_mem_t *memory, uint32_t memory_size, uint32_t initial_count)
	Create a Semaphore (using provided memory).
void	stk_sem_destroy (stk_sem_t *sem)
	Destroy a Semaphore.
bool	stk_sem_wait (stk_sem_t *sem, int32_t timeout)
	Wait for a semaphore resource.
void	stk_sem_signal (stk_sem_t *sem)
	Signal/Release a semaphore resource.
static bool	stk_ef_is_error (uint32_t result)
	Returns true if a value returned by stk_ef_set(), stk_ef_clear(), stk_ef_wait(), or stk_ef_trywait() is an error sentinel (bit 31 set).
stk_ef_t *	stk_ef_create (stk_ef_mem_t *memory, uint32_t memory_size, uint32_t initial_flags)
	Create an EventFlags object (using provided memory).
void	stk_ef_destroy (stk_ef_t *ef)
	Destroy an EventFlags object.
uint32_t	stk_ef_set (stk_ef_t *ef, uint32_t flags)
	Set one or more flags.
uint32_t	stk_ef_clear (stk_ef_t *ef, uint32_t flags)
	Clear one or more flags.
uint32_t	stk_ef_get (stk_ef_t *ef)
	Read the current flags word without modifying it.

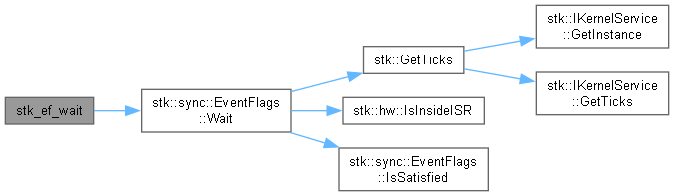

uint32_t	stk_ef_wait (stk_ef_t *ef, uint32_t flags, uint32_t options, int32_t timeout)
	Wait for one or more flags to be set.
uint32_t	stk_ef_trywait (stk_ef_t *ef, uint32_t flags, uint32_t options)
	Non-blocking flag poll.
stk_pipe_t *	stk_pipe_create (stk_pipe_mem_t *memory, uint32_t memory_size)
	Create a Pipe (using provided memory).
void	stk_pipe_destroy (stk_pipe_t *pipe)
	Destroy a Pipe.
bool	stk_pipe_write (stk_pipe_t *pipe, stk_word_t data, int32_t timeout)
	Write data to the pipe.
bool	stk_pipe_read (stk_pipe_t pipe, stk_word_t data, int32_t timeout)
	Read data from the pipe.
size_t	stk_pipe_write_bulk (stk_pipe_t pipe, const stk_word_t src, size_t count, int32_t timeout)
	Write multiple elements to the pipe.
size_t	stk_pipe_read_bulk (stk_pipe_t pipe, stk_word_t dst, size_t count, int32_t timeout)
	Read multiple elements from the pipe.
size_t	stk_pipe_get_size (stk_pipe_t *pipe)
	Get current number of elements in the pipe.
stk_rwmutex_t *	stk_rwmutex_create (stk_rwmutex_mem_t *memory, uint32_t memory_size)
	Create an RWMutex (using provided memory).
void	stk_rwmutex_destroy (stk_rwmutex_t *rw)
	Destroy an RWMutex.
void	stk_rwmutex_read_lock (stk_rwmutex_t *rw)
	Acquire the lock for shared reading. Blocks until available.
bool	stk_rwmutex_try_read_lock (stk_rwmutex_t *rw)
	Try to acquire the read lock without blocking.
bool	stk_rwmutex_timed_read_lock (stk_rwmutex_t *rw, int32_t timeout)
	Try to acquire the read lock with a timeout.
void	stk_rwmutex_read_unlock (stk_rwmutex_t *rw)
	Release the shared reader lock.
void	stk_rwmutex_lock (stk_rwmutex_t *rw)
	Acquire the lock for exclusive writing. Blocks until available.
bool	stk_rwmutex_trylock (stk_rwmutex_t *rw)
	Try to acquire the write lock without blocking.
bool	stk_rwmutex_timed_lock (stk_rwmutex_t *rw, int32_t timeout)
	Try to acquire the write lock with a timeout.
void	stk_rwmutex_unlock (stk_rwmutex_t *rw)
	Release the exclusive writer lock.

Detailed Description

Pure C interface for C++ API of SuperTinyKernel (STK).

Macro Definition Documentation

◆ __stk_c_stack_attr

#define __stk_c_stack_attr

Stack attribute (applies required alignment).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 74 of file stk_c.h.

◆ STK_C_ASSERT

#define STK_C_ASSERT ( e )

Value:

assert(e)

Assertion macro used inside STK C bindings.

Definition at line 66 of file stk_c.h.

◆ STK_C_CPU_COUNT

#define STK_C_CPU_COUNT (1)

Number of kernel instances / CPU cores supported (default: 1).

Note: Each core usually gets its own independent kernel instance.

Definition at line 51 of file stk_c.h.

Referenced by stk_timerhost_get().

◆ STK_C_KERNEL_MAX_TASKS

#define STK_C_KERNEL_MAX_TASKS (4)

Maximum number of tasks per kernel instance (default: 4).

Note: Increase this value if you need more tasks. Has direct impact on RAM and FLASH usage.

Definition at line 43 of file stk_c.h.

◆ STK_CV_IMPL_SIZE

#define STK_CV_IMPL_SIZE (7 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))

A memory size (multiples of stk_word_t) required for ConditionVariable instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 609 of file stk_c.h.

◆ STK_EF_ERROR_ISR

#define STK_EF_ERROR_ISR (0x80000004U)

Wait called from an ISR with a blocking timeout

Definition at line 763 of file stk_c.h.

◆ STK_EF_ERROR_MASK

#define STK_EF_ERROR_MASK (0x80000000U)

Mask for testing any error; bit 31 set means error

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 764 of file stk_c.h.

Referenced by stk_ef_is_error().

◆ STK_EF_ERROR_PARAMETER

#define STK_EF_ERROR_PARAMETER (0x80000001U)

Return-value error sentinels (bit 31 set indicates an error).

flags argument is 0 or has bit 31 set

Definition at line 761 of file stk_c.h.

◆ STK_EF_ERROR_TIMEOUT

#define STK_EF_ERROR_TIMEOUT (0x80000002U)

Timeout expired before the flag condition was met

Definition at line 762 of file stk_c.h.

◆ STK_EF_IMPL_SIZE

#define STK_EF_IMPL_SIZE (STK_CV_IMPL_SIZE + 1 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))

A memory size (multiples of stk_word_t) required for EventFlags instance.

Note: EventFlags contains one ConditionVariable (STK_CV_IMPL_SIZE words) plus one 32-bit flags word and alignment padding.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 775 of file stk_c.h.

◆ STK_EF_OPT_NO_CLEAR

#define STK_EF_OPT_NO_CLEAR (0x00000002U)

Do not clear matched bits on a successful return

Definition at line 757 of file stk_c.h.

◆ STK_EF_OPT_WAIT_ALL

#define STK_EF_OPT_WAIT_ALL (0x00000001U)

Unblock when ALL requested bits are simultaneously set (AND semantics)

Definition at line 756 of file stk_c.h.

◆ STK_EF_OPT_WAIT_ANY

#define STK_EF_OPT_WAIT_ANY (0x00000000U)

Options bitmask constants for stk_ef_wait() / stk_ef_trywait().

Unblock when ANY requested bit is set (OR semantics, default)

Definition at line 755 of file stk_c.h.

◆ STK_EVENT_IMPL_SIZE

#define STK_EVENT_IMPL_SIZE (8 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))

A memory size (multiples of stk_word_t) required for Event instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 657 of file stk_c.h.

◆ STK_MUTEX_IMPL_SIZE

#define STK_MUTEX_IMPL_SIZE (10 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))

A memory size (multiples of stk_word_t) required for Mutex instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 517 of file stk_c.h.

◆ STK_NO_WAIT

#define STK_NO_WAIT (0)

No timeout constant.

Definition at line 116 of file stk_c.h.

◆ STK_PERIODICITY_DEFAULT

#define STK_PERIODICITY_DEFAULT (1000U)

Default tick period (1 ms).

in microseconds

Definition at line 99 of file stk_c.h.

◆ STK_PIPE_IMPL_SIZE

#define STK_PIPE_IMPL_SIZE ((27 + (STK_SYNC_DEBUG_NAMES ? 3 : 0)) + STK_PIPE_SIZE)

A memory size (multiples of stk_word_t) required for Pipe instance.

Note: Sized for Pipe<stk_word_t, 16>. Adjust if template parameters change.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 869 of file stk_c.h.

◆ STK_PIPE_SIZE

#define STK_PIPE_SIZE 16

Size of the Pipe: Pipe<stk_word_t, STK_PIPE_SIZE>.

Note: Adjust if larger or smaller pipe is needed.

Definition at line 864 of file stk_c.h.

◆ STK_RWMUTEX_IMPL_SIZE

#define STK_RWMUTEX_IMPL_SIZE (17 + (STK_SYNC_DEBUG_NAMES ? 3 : 0))

A memory size (multiples of stk_word_t) required for RWMutex instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 937 of file stk_c.h.

◆ STK_SEM_IMPL_SIZE

#define STK_SEM_IMPL_SIZE (8 + (STK_SYNC_DEBUG_NAMES ? 1 : 0))

A memory size (multiples of stk_word_t) required for Semaphore instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 714 of file stk_c.h.

◆ STK_SPINLOCK_IMPL_SIZE

#define STK_SPINLOCK_IMPL_SIZE (1)

A memory size (multiples of stk_word_t) required for SpinLock instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 568 of file stk_c.h.

◆ STK_SYNC_DEBUG_NAMES

#define STK_SYNC_DEBUG_NAMES (0)

Enable names for synchronization primitives for debugging/tracing purpose.

Definition at line 60 of file stk_c.h.

◆ STK_TLS_GET

#define STK_TLS_GET ( type )

Value:

((type *)stk_tls_get())

stk_tls_get

void * stk_tls_get(void)

Get thread-local pointer (platform-specific slot).

Definition stk_c.cpp:338

Typed helper for getting TLS value.

Note: Expands to ((type *)stk_tls_get())

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 473 of file stk_c.h.

◆ STK_TLS_SET

#define STK_TLS_SET ( ptr )

Value:

stk_tls_set((void *)(ptr))

stk_tls_set

void stk_tls_set(void *ptr)

Set thread-local pointer.

Definition stk_c.cpp:343

Typed helper for setting TLS value.

Note: Expands to stk_tls_set((void *)(ptr))

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 478 of file stk_c.h.

◆ STK_WAIT_INFINITE

#define STK_WAIT_INFINITE (INT32_MAX)

Infinite timeout constant.

Definition at line 112 of file stk_c.h.

Typedef Documentation

◆ EKernelState

typedef enum _EKernelState EKernelState

Kernel state.

Note: It is a direct match for IKernel::EState enum.

See also: stk_kernel_get_state()

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

◆ stk_cv_mem_t

typedef struct stk_cv_mem_t stk_cv_mem_t

Opaque memory container for a ConditionVariable instance.

◆ stk_cv_t

typedef struct stk_cv_t stk_cv_t

Opaque handle to a Condition Variable instance.

Definition at line 619 of file stk_c.h.

◆ stk_ef_mem_t

typedef struct stk_ef_mem_t stk_ef_mem_t

Opaque memory container for an EventFlags instance.

◆ stk_ef_t

typedef struct stk_ef_t stk_ef_t

Opaque handle to an EventFlags instance.

Definition at line 785 of file stk_c.h.

◆ stk_event_mem_t

typedef struct stk_event_mem_t stk_event_mem_t

Opaque memory container for an Event instance.

◆ stk_event_t

typedef struct stk_event_t stk_event_t

Opaque handle to an Event instance.

Definition at line 667 of file stk_c.h.

◆ stk_kernel_t

typedef struct stk_kernel_t stk_kernel_t

Opaque handle to a kernel instance.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 91 of file stk_c.h.

◆ stk_mutex_mem_t

typedef struct stk_mutex_mem_t stk_mutex_mem_t

Opaque memory container for a Mutex instance.

◆ stk_mutex_t

typedef struct stk_mutex_t stk_mutex_t

Opaque handle to a Mutex instance.

Definition at line 527 of file stk_c.h.

◆ stk_pipe_mem_t

typedef struct stk_pipe_mem_t stk_pipe_mem_t

Opaque memory container for a Pipe instance.

◆ stk_pipe_t

typedef struct stk_pipe_t stk_pipe_t

Opaque handle to a Pipe instance.

Definition at line 879 of file stk_c.h.

◆ stk_rwmutex_mem_t

typedef struct stk_rwmutex_mem_t stk_rwmutex_mem_t

Opaque memory container for an RWMutex instance.

◆ stk_rwmutex_t

typedef struct stk_rwmutex_t stk_rwmutex_t

Opaque handle to an RWMutex instance.

Definition at line 947 of file stk_c.h.

◆ stk_sem_mem_t

typedef struct stk_sem_mem_t stk_sem_mem_t

Opaque memory container for a Semaphore instance.

◆ stk_sem_t

typedef struct stk_sem_t stk_sem_t

Opaque handle to a Semaphore instance.

Definition at line 724 of file stk_c.h.

◆ stk_spinlock_t

typedef struct stk_spinlock_t stk_spinlock_t

Opaque handle to a SpinLock instance.

Definition at line 579 of file stk_c.h.

◆ stk_task_entry_t

typedef void(* stk_task_entry_t) (void *arg)

Task entry point function type.

Parameters

[in] arg User-supplied argument (may be NULL)

Note: If KERNEL_STATIC, the function must never return. If KERNEL_DYNAMIC, it may return and then task will be considered as finished.; KERNEL_TICKLESS is compatible with both KERNEL_STATIC and KERNEL_DYNAMIC, but is incompatible with KERNEL_HRT (see kernel type definitions below).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 108 of file stk_c.h.

◆ stk_task_t

typedef struct stk_task_t stk_task_t

Opaque handle to a task instance.

Definition at line 95 of file stk_c.h.

◆ stk_tid_t

typedef stk_word_t stk_tid_t

Task id.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 87 of file stk_c.h.

◆ stk_word_t

typedef uintptr_t stk_word_t

CPU register type.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 83 of file stk_c.h.

Enumeration Type Documentation

◆ _EKernelState

enum _EKernelState

Kernel state.

Note: It is a direct match for IKernel::EState enum.

See also: stk_kernel_get_state()

Enumerator
STK_KERNEL_STATE_INACTIVE	not ready, stk_kernel_init() must be called
STK_KERNEL_STATE_READY	ready to start, stk_kernel_start() must be called
STK_KERNEL_STATE_RUNNING	initialized and running, stk_kernel_start() was called successfully

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 268 of file stk_c.h.

                           {
    STK_KERNEL_STATE_INACTIVE = 0,
    STK_KERNEL_STATE_READY    = 1,
    STK_KERNEL_STATE_RUNNING  = 2
} EKernelState;

Function Documentation

◆ stk_critical_section_enter()

void stk_critical_section_enter ( void )

Enter critical section — disable context switches on current core.

Note: Supports nesting (number of enter calls must match number of exit calls).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 351 of file stk_c.cpp.

{
    hw::CriticalSection::Enter();
}

References stk::hw::CriticalSection::Enter().

Here is the call graph for this function:

◆ stk_critical_section_exit()

void stk_critical_section_exit ( void )

Leave critical section — re-enable context switches.

Note: Must be called once for each previous stk_critical_section_enter().

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 356 of file stk_c.cpp.

{
    hw::CriticalSection::Exit();
}

References stk::hw::CriticalSection::Exit().

Here is the call graph for this function:

◆ stk_cv_create()

stk_cv_t * stk_cv_create	(	stk_cv_mem_t *	memory,
		uint32_t	memory_size )

Create a Condition Variable (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_cv_mem_t)).

Returns: CV handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 131 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_cv_t));
    if (memory_size < sizeof(stk_cv_t))
        return nullptr;

    // construct in-place within the provided memory
    return (stk_cv_t *)new (memory->data) stk_cv_t{};
}

References stk_cv_mem_t::data, and STK_ASSERT.

◆ stk_cv_destroy()

void stk_cv_destroy ( stk_cv_t * cv )

Destroy a Condition Variable.

Parameters

[in] cv CV handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 142 of file stk_c_sync.cpp.

{
    if (cv != nullptr)
        cv->~stk_cv_t();
}

◆ stk_cv_notify_all()

void stk_cv_notify_all ( stk_cv_t * cv )

Wake all tasks waiting on the condition variable.

Parameters

[in] cv CV handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 163 of file stk_c_sync.cpp.

{
    STK_ASSERT(cv != nullptr);

    cv->handle.NotifyAll();
}

References stk_cv_t::handle, stk::sync::ConditionVariable::NotifyAll(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_cv_notify_one()

void stk_cv_notify_one ( stk_cv_t * cv )

Wake one task waiting on the condition variable.

Parameters

[in] cv CV handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 156 of file stk_c_sync.cpp.

{
    STK_ASSERT(cv != nullptr);

    cv->handle.NotifyOne();
}

References stk_cv_t::handle, stk::sync::ConditionVariable::NotifyOne(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_cv_wait()

bool stk_cv_wait	(	stk_cv_t *	cv,
		stk_mutex_t *	mtx,
		int32_t	timeout )

Wait for a signal on the condition variable.

Atomically releases the mutex and suspends the task. The mutex is re-acquired before returning.

Parameters

[in]	cv	CV handle.
[in]	mtx	Locked mutex handle protecting the state.
[in]	timeout	Max time to wait (or STK_WAIT_INFINITE).

Returns: True if signaled, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 148 of file stk_c_sync.cpp.

{
    STK_ASSERT(cv != nullptr);
    STK_ASSERT(mtx != nullptr);

    return cv->handle.Wait(mtx->handle, timeout);
}

References stk_cv_t::handle, stk_mutex_t::handle, STK_ASSERT, and stk::sync::ConditionVariable::Wait().

Here is the call graph for this function:

◆ stk_delay()

void stk_delay ( uint32_t ticks )

Busy-wait delay (other tasks continue to run).

Parameters

[in] ticks Ticks to delay.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 328 of file stk_c.cpp.

328{ stk::Delay(ticks); }

stk::Delay

void Delay(uint32_t ticks)

Delay calling process by busy-waiting until the deadline expires.

Definition stk_helper.h:342

References stk::Delay().

Here is the call graph for this function:

◆ stk_delay_ms()

void stk_delay_ms ( uint32_t ms )

Busy-wait delay (other tasks continue to run).

Parameters

[in] ms Milliseconds to delay.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 330 of file stk_c.cpp.

330{ stk::DelayMs(ms); }

stk::DelayMs

static void DelayMs(uint32_t ms)

Delay calling process by busy-waiting until the deadline expires.

Definition stk_helper.h:353

References stk::DelayMs().

Here is the call graph for this function:

◆ stk_ef_clear()

uint32_t stk_ef_clear	(	stk_ef_t *	ef,
		uint32_t	flags )

Clear one or more flags.

Atomically clears the specified bits.

Parameters

[in]	ef	EventFlags handle.
[in]	flags	Bitmask of bits to clear. Must not be 0 and must not have bit 31 set.

Returns: Flags word value before clearing, or STK_EF_ERROR_PARAMETER on invalid input.

Note: ISR-safe.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 307 of file stk_c_sync.cpp.

{
    STK_ASSERT(ef != nullptr);

    return ef->handle.Clear(flags);
}

References stk::sync::EventFlags::Clear(), stk_ef_t::handle, and STK_ASSERT.

Here is the call graph for this function:

◆ stk_ef_create()

stk_ef_t * stk_ef_create	(	stk_ef_mem_t *	memory,
		uint32_t	memory_size,
		uint32_t	initial_flags )

Create an EventFlags object (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_ef_mem_t)).
[in]	initial_flags	Initial value of the 32-bit flags word (bits 0..30 only; bit 31 is reserved and must not be set).

Returns: EventFlags handle, or NULL if memory is too small.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 284 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_ef_t));
    if (memory_size < sizeof(stk_ef_t))
        return nullptr;

    return (stk_ef_t *)new (memory->data) stk_ef_t(initial_flags);
}

References stk_ef_mem_t::data, and STK_ASSERT.

◆ stk_ef_destroy()

void stk_ef_destroy ( stk_ef_t * ef )

Destroy an EventFlags object.

Parameters

[in] ef EventFlags handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 294 of file stk_c_sync.cpp.

{
    if (ef != nullptr)
        ef->~stk_ef_t();
}

◆ stk_ef_get()

uint32_t stk_ef_get ( stk_ef_t * ef )

Read the current flags word without modifying it.

Parameters

[in] ef EventFlags handle.

Returns: Point-in-time snapshot of the 32-bit flags word.

Note: ISR-safe. Never blocks or modifies state.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 314 of file stk_c_sync.cpp.

{
    STK_ASSERT(ef != nullptr);

    return ef->handle.Get();
}

References stk::sync::EventFlags::Get(), stk_ef_t::handle, and STK_ASSERT.

Here is the call graph for this function:

◆ stk_ef_is_error()

bool stk_ef_is_error ( uint32_t result )

inlinestatic

Returns true if a value returned by stk_ef_set(), stk_ef_clear(), stk_ef_wait(), or stk_ef_trywait() is an error sentinel (bit 31 set).

< Mask for testing any error; bit 31 set means error

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 769 of file stk_c.h.

769{ return ((result & STK_EF_ERROR_MASK) != 0U); }

STK_EF_ERROR_MASK

#define STK_EF_ERROR_MASK

Definition stk_c.h:764

References STK_EF_ERROR_MASK.

◆ stk_ef_set()

uint32_t stk_ef_set	(	stk_ef_t *	ef,
		uint32_t	flags )

Set one or more flags.

Atomically OR-sets the specified bits and wakes all current waiters so each can re-evaluate its own predicate.

Parameters

[in]	ef:EventFlags	handle.
[in]	flags	Bitmask of bits to set. Must not be 0 and must not have bit 31 set.

Returns: Flags word value after setting, or STK_EF_ERROR_PARAMETER on invalid input.

Note: ISR-safe.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 300 of file stk_c_sync.cpp.

{
    STK_ASSERT(ef != nullptr);

    return ef->handle.Set(flags);
}

References stk_ef_t::handle, stk::sync::EventFlags::Set(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_ef_trywait()

uint32_t stk_ef_trywait	(	stk_ef_t *	ef,
		uint32_t	flags,
		uint32_t	options )

Non-blocking flag poll.

Checks immediately whether the flag condition is satisfied. Clears matched bits on success unless STK_EF_OPT_NO_CLEAR is set.

Parameters

[in]	ef	EventFlags handle.
[in]	flags	Bitmask of flag bits to watch.
[in]	options	`STK_EF_OPT_WAIT_ANY` (default) or `STK_EF_OPT_WAIT_ALL`, optionally OR-ed with `STK_EF_OPT_NO_CLEAR`.

Returns: Matched flags bitmask on success, or STK_EF_ERROR_TIMEOUT immediately if the condition is not met.

Note: ISR-safe.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 328 of file stk_c_sync.cpp.

{
    STK_ASSERT(ef != nullptr);

    return ef->handle.TryWait(flags, options);
}

References stk_ef_t::handle, STK_ASSERT, and stk::sync::EventFlags::TryWait().

Here is the call graph for this function:

◆ stk_ef_wait()

uint32_t stk_ef_wait	(	stk_ef_t *	ef,
		uint32_t	flags,
		uint32_t	options,
		int32_t	timeout )

Wait for one or more flags to be set.

Suspends the calling task until the requested flag condition is satisfied or the timeout expires. On success, matched bits are atomically cleared unless STK_EF_OPT_NO_CLEAR is set in options.

Parameters

[in]	ef	EventFlags handle.
[in]	flags	Bitmask of flag bits to watch. Must not be 0 and must not have bit 31 set.
[in]	options	Combination of `STK_EF_OPT_WAIT_ANY` / `STK_EF_OPT_WAIT_ALL` and optionally `STK_EF_OPT_NO_CLEAR`.
[in]	timeout	Maximum time to wait (ticks). Use `STK_WAIT_INFINITE` to block indefinitely, `STK_NO_WAIT` for a non-blocking poll.

Returns: Bitmask of the matched flags on success, or a STK_EF_ERROR_* sentinel on failure. Always check stk_ef_is_error() before using the return value as a flags mask.

Note: If the predicate becomes satisfied in the same tick that the deadline expires, the wait succeeds and returns the matched flags.

Warning: ISR-safe only with timeout = STK_NO_WAIT, ISR-unsafe otherwise.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 321 of file stk_c_sync.cpp.

{
    STK_ASSERT(ef != nullptr);

    return ef->handle.Wait(flags, options, timeout);
}

References stk_ef_t::handle, STK_ASSERT, and stk::sync::EventFlags::Wait().

Here is the call graph for this function:

◆ stk_event_create()

stk_event_t * stk_event_create	(	stk_event_mem_t *	memory,
		uint32_t	memory_size,
		bool	manual_reset )

Create an Event (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_event_mem_t)).
[in]	manual_reset	True for manual-reset, False for auto-reset.

Returns: Event handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 181 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_event_t));
    if (memory_size < sizeof(stk_event_t))
        return nullptr;

    return (stk_event_t *)new (memory->data) stk_event_t(manual_reset);
}

References stk_event_mem_t::data, and STK_ASSERT.

◆ stk_event_destroy()

void stk_event_destroy ( stk_event_t * ev )

Destroy an Event.

Parameters

[in] ev Event handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 191 of file stk_c_sync.cpp.

{
    if (ev != nullptr)
        ev->~stk_event_t();
}

◆ stk_event_pulse()

void stk_event_pulse ( stk_event_t * ev )

Pulse the event (signal then immediately reset).

Parameters

[in] ev Event handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 225 of file stk_c_sync.cpp.

{
    STK_ASSERT(ev != nullptr);

    ev->handle.Pulse();
}

References stk_event_t::handle, stk::sync::Event::Pulse(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_event_reset()

void stk_event_reset ( stk_event_t * ev )

Reset the event to non-signaled state.

Parameters

[in] ev Event handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 218 of file stk_c_sync.cpp.

{
    STK_ASSERT(ev != nullptr);

    ev->handle.Reset();
}

References stk_event_t::handle, stk::sync::Event::Reset(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_event_set()

void stk_event_set ( stk_event_t * ev )

Set the event to signaled state.

Parameters

[in] ev Event handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 211 of file stk_c_sync.cpp.

{
    STK_ASSERT(ev != nullptr);

    ev->handle.Set();
}

References stk_event_t::handle, stk::sync::Event::Set(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_event_trywait()

bool stk_event_trywait ( stk_event_t * ev )

Wait for the event to become signaled.

Parameters

[in] ev Event handle.

Returns: True if signaled, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 204 of file stk_c_sync.cpp.

{
    STK_ASSERT(ev != nullptr);

    return ev->handle.TryWait();
}

References stk_event_t::handle, STK_ASSERT, and stk::sync::Event::TryWait().

Here is the call graph for this function:

◆ stk_event_wait()

bool stk_event_wait	(	stk_event_t *	ev,
		int32_t	timeout )

Wait for the event to become signaled.

Parameters

[in]	ev	Event handle.
[in]	timeout	Max time to wait in milliseconds.

Returns: True if signaled, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 197 of file stk_c_sync.cpp.

{
    STK_ASSERT(ev != nullptr);

    return ev->handle.Wait(timeout);
}

References stk_event_t::handle, STK_ASSERT, and stk::sync::Event::Wait().

Here is the call graph for this function:

◆ stk_kernel_add_task()

void stk_kernel_add_task	(	stk_kernel_t *	k,
		stk_task_t *	task )

Add task to non-HRT kernel (static or dynamic).

Parameters

[in]	k	Kernel handle.
[in]	task	Task handle created with one of stk_task_create_* functions.

Note: For static kernels this must be done before stk_kernel_start().

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 225 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);
    STK_ASSERT(task != nullptr);

    reinterpret_cast<stk::IKernel *>(k)->AddTask(&task->handle);
}

References stk_task_t::handle, and STK_ASSERT.

◆ stk_kernel_add_task_hrt()

void stk_kernel_add_task_hrt	(	stk_kernel_t *	k,
		stk_task_t *	task,
		int32_t	periodicity_ticks,
		int32_t	deadline_ticks,
		int32_t	start_delay_ticks )

Add task with HRT timing parameters (HRT kernels only).

Parameters

[in]	k	Kernel handle.
[in]	task	Task handle.
[in]	periodicity_ticks	Period in ticks.
[in]	deadline_ticks	Relative deadline in ticks.
[in]	start_delay_ticks	Initial offset / phase in ticks (>= 0).

Note: Must be called after stk_kernel_init() and before stk_kernel_start().

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 241 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);
    STK_ASSERT(task != nullptr);

    reinterpret_cast<stk::IKernel *>(k)->AddTask(
        &task->handle,
        periodicity_ticks,
        deadline_ticks,
        start_delay_ticks);
}

References stk_task_t::handle, and STK_ASSERT.

◆ stk_kernel_create()

stk_kernel_t * stk_kernel_create ( uint8_t core_nr )

Create kernel.

Note: At least STK_C_KERNEL_TYPE_CPU_0 must be defined with the type of the kernel. Place STK_C_KERNEL_TYPE_CPU_X defines inside the stk_config.h file which is per project. STK_C_KERNEL_TYPE_CPU_X type will be assigned to X core.

Parameters

[in] core_nr CPU core number (starts with 0). Max: 7 (for 8 cores).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 153 of file stk_c.cpp.

{
    switch (core_nr)
    {
#ifdef STK_C_KERNEL_TYPE_CPU_0
    STK_KERNEL_CASE(0)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_1
    STK_KERNEL_CASE(1)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_2
    STK_KERNEL_CASE(2)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_3
    STK_KERNEL_CASE(3)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_4
    STK_KERNEL_CASE(4)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_5
    STK_KERNEL_CASE(5)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_6
    STK_KERNEL_CASE(6)
#endif
#ifdef STK_C_KERNEL_TYPE_CPU_7
    STK_KERNEL_CASE(7)
#endif
    default:
        return nullptr;
    }
}

References STK_KERNEL_CASE.

◆ stk_kernel_destroy()

void stk_kernel_destroy ( stk_kernel_t * k )

Destroy dynamic kernel instance (only when not running).

Parameters

[in] k Kernel handle.

Note: Kernel must not be running (all tasks must have exited or been removed). Only valid for kernels created with dynamic factory functions.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 186 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);

    reinterpret_cast<IKernel *>(k)->~IKernel();
}

References STK_ASSERT.

◆ stk_kernel_get_state()

EKernelState stk_kernel_get_state ( const stk_kernel_t * k )

Get state of the scheduler.

Parameters

[in] k Kernel handle.

Returns: State value, see EKernelState.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 210 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);

    return static_cast<EKernelState>(reinterpret_cast<const stk::IKernel *>(k)->GetState());
}

References stk::IKernel::GetState(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_kernel_init()

void stk_kernel_init	(	stk_kernel_t *	k,
		uint32_t	tick_period_us )

Initialize kernel with given tick period.

Parameters

[in]	k	Kernel handle.
[in]	tick_period_us	System tick period in microseconds (usually 100–10000).

Note: Must be called exactly once before adding tasks or starting scheduler.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 196 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);

    reinterpret_cast<stk::IKernel *>(k)->Initialize(tick_period_us);
}

References STK_ASSERT.

◆ stk_kernel_is_schedulable()

bool stk_kernel_is_schedulable ( const stk_kernel_t * k )

Test whether currently configured task set is schedulable.

Parameters

[in] k Kernel handle.

Returns: True if task set passes schedulability test, False otherwise.

Note: Only meaningful for HRT RM/DM kernels.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 217 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);

    return SchedulabilityCheck::IsSchedulableWCRT<STK_C_KERNEL_MAX_TASKS>(
            reinterpret_cast<stk::IKernel *>(const_cast<stk_kernel_t *>(k))->GetSwitchStrategy());
}

References stk::SchedulabilityCheck::IsSchedulableWCRT(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_kernel_remove_task()

void stk_kernel_remove_task	(	stk_kernel_t *	k,
		stk_task_t *	task )

Remove finished task from dynamic kernel.

Parameters

[in]	k	Kernel handle.
[in]	task	Task that has already returned from its entry function.

Note: Only valid in dynamic kernels. Task must have exited (returned from entry function).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 233 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);
    STK_ASSERT(task != nullptr);

    reinterpret_cast<stk::IKernel *>(k)->RemoveTask(&task->handle);
}

References stk_task_t::handle, and STK_ASSERT.

◆ stk_kernel_start()

void stk_kernel_start ( stk_kernel_t * k )

Start the scheduler - never returns.

Parameters

[in] k Kernel handle.

Note: Transfers control to the scheduler and a first ready task. May return if all tasks are finished and kernel is dynamic.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 203 of file stk_c.cpp.

{
    STK_ASSERT(k != nullptr);

    reinterpret_cast<stk::IKernel *>(k)->Start();
}

References STK_ASSERT.

◆ stk_mutex_create()

stk_mutex_t * stk_mutex_create	(	stk_mutex_mem_t *	memory,
		uint32_t	memory_size )

Create a Mutex (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_mutex_mem_t)).

Returns: Mutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 36 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_mutex_t));
    if (memory_size < sizeof(stk_mutex_t))
        return nullptr;

    // construct in-place within the provided memory
    return (stk_mutex_t *)new (memory->data) stk_mutex_t{};
}

References stk_mutex_mem_t::data, and STK_ASSERT.

◆ stk_mutex_destroy()

void stk_mutex_destroy ( stk_mutex_t * mtx )

Destroy a Mutex.

Parameters

[in] mtx Mutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 47 of file stk_c_sync.cpp.

{
    if (mtx != NULL)
        mtx->~stk_mutex_t();
}

◆ stk_mutex_lock()

void stk_mutex_lock ( stk_mutex_t * mtx )

Lock the mutex. Blocks until available.

Parameters

[in] mtx Mutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 53 of file stk_c_sync.cpp.

{
    STK_ASSERT(mtx != NULL);

    mtx->handle.Lock();
}

References stk_mutex_t::handle, stk::sync::Mutex::Lock(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_mutex_timed_lock()

bool stk_mutex_timed_lock	(	stk_mutex_t *	mtx,
		int32_t	timeout )

Try to lock the mutex with a timeout.

Parameters

[in]	mtx	Mutex handle.
[in]	timeout	Max time to wait in milliseconds.

Returns: True if locked successfully, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 74 of file stk_c_sync.cpp.

{
    STK_ASSERT(mtx != NULL);

    return mtx->handle.TimedLock(timeout);
}

References stk_mutex_t::handle, STK_ASSERT, and stk::sync::Mutex::TimedLock().

Here is the call graph for this function:

◆ stk_mutex_trylock()

bool stk_mutex_trylock ( stk_mutex_t * mtx )

Try locking the mutex. Does not block if already locked.

Parameters

[in] mtx Mutex handle.

Returns: True if locked successfully, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 60 of file stk_c_sync.cpp.

{
    STK_ASSERT(mtx != NULL);

    return mtx->handle.TryLock();
}

References stk_mutex_t::handle, STK_ASSERT, and stk::sync::Mutex::TryLock().

Here is the call graph for this function:

◆ stk_mutex_unlock()

void stk_mutex_unlock ( stk_mutex_t * mtx )

Unlock the mutex.

Parameters

[in] mtx Mutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 67 of file stk_c_sync.cpp.

{
    STK_ASSERT(mtx != NULL);

    mtx->handle.Unlock();
}

References stk_mutex_t::handle, STK_ASSERT, and stk::sync::Mutex::Unlock().

Here is the call graph for this function:

◆ stk_pipe_create()

stk_pipe_t * stk_pipe_create	(	stk_pipe_mem_t *	memory,
		uint32_t	memory_size )

Create a Pipe (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_pipe_mem_t)).

Returns: Pipe handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 345 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_pipe_t));
    if (memory_size < sizeof(stk_pipe_t))
        return nullptr;

    return (stk_pipe_t *)new (memory->data) stk_pipe_t{};
}

References stk_pipe_mem_t::data, and STK_ASSERT.

◆ stk_pipe_destroy()

void stk_pipe_destroy ( stk_pipe_t * pipe )

Destroy a Pipe.

Parameters

[in] pipe Pipe handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 355 of file stk_c_sync.cpp.

{
    if (pipe != nullptr)
        pipe->~stk_pipe_t();
}

◆ stk_pipe_get_size()

size_t stk_pipe_get_size ( stk_pipe_t * pipe )

Get current number of elements in the pipe.

Parameters

[in] pipe Pipe handle.

Returns: Current element count.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 390 of file stk_c_sync.cpp.

{
    STK_ASSERT(pipe != nullptr);

    return pipe->handle.GetSize();
}

References stk::sync::Pipe< T, N >::GetSize(), stk_pipe_t::handle, and STK_ASSERT.

Here is the call graph for this function:

◆ stk_pipe_read()

bool stk_pipe_read	(	stk_pipe_t *	pipe,
		stk_word_t *	data,
		int32_t	timeout )

Read data from the pipe.

Parameters

[in]	pipe	Pipe handle.
[out]	data	Pointer to variable receiving the data.
[in]	timeout	Max time to wait in milliseconds.

Returns: True if successful, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 368 of file stk_c_sync.cpp.

{
    STK_ASSERT(pipe != nullptr);
    STK_ASSERT(data != nullptr);

    return pipe->handle.Read(*data, timeout);
}

References stk_pipe_t::handle, stk::sync::Pipe< T, N >::Read(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_pipe_read_bulk()

size_t stk_pipe_read_bulk	(	stk_pipe_t *	pipe,
		stk_word_t *	dst,
		size_t	count,
		int32_t	timeout )

Read multiple elements from the pipe.

Parameters

[in]	pipe	Pipe handle.
[out]	dst	Pointer to destination array.
[in]	count	Number of elements to read.
[in]	timeout	Max time to wait in milliseconds.

Returns: Number of elements actually read.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 383 of file stk_c_sync.cpp.

{
    STK_ASSERT(pipe != nullptr);

    return pipe->handle.ReadBulk(dst, count, timeout);
}

References stk_pipe_t::handle, stk::sync::Pipe< T, N >::ReadBulk(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_pipe_write()

bool stk_pipe_write	(	stk_pipe_t *	pipe,
		stk_word_t	data,
		int32_t	timeout )

Write data to the pipe.

Parameters

[in]	pipe	Pipe handle.
[in]	data	Value to write.
[in]	timeout	Max time to wait in milliseconds.

Returns: True if successful, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 361 of file stk_c_sync.cpp.

{
    STK_ASSERT(pipe != nullptr);

    return pipe->handle.Write(data, timeout);
}

References stk_pipe_t::handle, STK_ASSERT, and stk::sync::Pipe< T, N >::Write().

Here is the call graph for this function:

◆ stk_pipe_write_bulk()

size_t stk_pipe_write_bulk	(	stk_pipe_t *	pipe,
		const stk_word_t *	src,
		size_t	count,
		int32_t	timeout )

Write multiple elements to the pipe.

Parameters

[in]	pipe	Pipe handle.
[in]	src	Pointer to source array.
[in]	count	Number of elements to write.
[in]	timeout	Max time to wait in milliseconds.

Returns: Number of elements actually written.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 376 of file stk_c_sync.cpp.

{
    STK_ASSERT(pipe != nullptr);

    return pipe->handle.WriteBulk(src, count, timeout);
}

References stk_pipe_t::handle, STK_ASSERT, and stk::sync::Pipe< T, N >::WriteBulk().

Here is the call graph for this function:

◆ stk_rwmutex_create()

stk_rwmutex_t * stk_rwmutex_create	(	stk_rwmutex_mem_t *	memory,
		uint32_t	memory_size )

Create an RWMutex (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_rwmutex_mem_t)).

Returns: RWMutex handle, or NULL if memory is too small.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 405 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_rwmutex_t));
    if (memory_size < sizeof(stk_rwmutex_t))
        return nullptr;

    return (stk_rwmutex_t *)new (memory->data) stk_rwmutex_t{};
}

References stk_rwmutex_mem_t::data, and STK_ASSERT.

◆ stk_rwmutex_destroy()

void stk_rwmutex_destroy ( stk_rwmutex_t * rw )

Destroy an RWMutex.

Parameters

[in] rw RWMutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 415 of file stk_c_sync.cpp.

{
    if (rw != nullptr)
        rw->~stk_rwmutex_t();
}

◆ stk_rwmutex_lock()

void stk_rwmutex_lock ( stk_rwmutex_t * rw )

Acquire the lock for exclusive writing. Blocks until available.

Blocks until all active readers have released their locks and no other writer is active.

Parameters

[in] rw RWMutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 449 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    rw->handle.Lock();
}

References stk_rwmutex_t::handle, stk::sync::RWMutex::Lock(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_rwmutex_read_lock()

void stk_rwmutex_read_lock ( stk_rwmutex_t * rw )

Acquire the lock for shared reading. Blocks until available.

Blocks if a writer is currently active or writers are waiting (Writer Preference Policy).

Parameters

[in] rw RWMutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 421 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    rw->handle.ReadLock();
}

References stk_rwmutex_t::handle, stk::sync::RWMutex::ReadLock(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_rwmutex_read_unlock()

void stk_rwmutex_read_unlock ( stk_rwmutex_t * rw )

Release the shared reader lock.

If this is the last active reader, waiting writers are notified.

Parameters

[in] rw RWMutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 442 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    rw->handle.ReadUnlock();
}

References stk_rwmutex_t::handle, stk::sync::RWMutex::ReadUnlock(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_rwmutex_timed_lock()

bool stk_rwmutex_timed_lock	(	stk_rwmutex_t *	rw,
		int32_t	timeout )

Try to acquire the write lock with a timeout.

Parameters

[in]	rw	RWMutex handle.
[in]	timeout	Max time to wait (ticks). Use STK_NO_WAIT for non-blocking.

Returns: True if acquired, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 463 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    return rw->handle.TimedLock(timeout);
}

References stk_rwmutex_t::handle, STK_ASSERT, and stk::sync::RWMutex::TimedLock().

Here is the call graph for this function:

◆ stk_rwmutex_timed_read_lock()

bool stk_rwmutex_timed_read_lock	(	stk_rwmutex_t *	rw,
		int32_t	timeout )

Try to acquire the read lock with a timeout.

Parameters

[in]	rw	RWMutex handle.
[in]	timeout	Max time to wait (ticks). Use STK_NO_WAIT for non-blocking.

Returns: True if acquired, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 435 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    return rw->handle.TimedReadLock(timeout);
}

References stk_rwmutex_t::handle, STK_ASSERT, and stk::sync::RWMutex::TimedReadLock().

Here is the call graph for this function:

◆ stk_rwmutex_try_read_lock()

bool stk_rwmutex_try_read_lock ( stk_rwmutex_t * rw )

Try to acquire the read lock without blocking.

Parameters

[in] rw RWMutex handle.

Returns: True if the read lock was acquired, False if a writer is active or waiting.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 428 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    return rw->handle.TryReadLock();
}

References stk_rwmutex_t::handle, STK_ASSERT, and stk::sync::RWMutex::TryReadLock().

Here is the call graph for this function:

◆ stk_rwmutex_trylock()

bool stk_rwmutex_trylock ( stk_rwmutex_t * rw )

Try to acquire the write lock without blocking.

Parameters

[in] rw RWMutex handle.

Returns: True if the exclusive lock was acquired, False otherwise.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 456 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    return rw->handle.TryLock();
}

References stk_rwmutex_t::handle, STK_ASSERT, and stk::sync::RWMutex::TryLock().

Here is the call graph for this function:

◆ stk_rwmutex_unlock()

void stk_rwmutex_unlock ( stk_rwmutex_t * rw )

Release the exclusive writer lock.

Prioritizes waking waiting writers. If none are waiting, all waiting readers are woken (Writer Preference Policy).

Parameters

[in] rw RWMutex handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 470 of file stk_c_sync.cpp.

{
    STK_ASSERT(rw != nullptr);

    rw->handle.Unlock();
}

References stk_rwmutex_t::handle, STK_ASSERT, and stk::sync::RWMutex::Unlock().

Here is the call graph for this function:

◆ stk_sem_create()

stk_sem_t * stk_sem_create	(	stk_sem_mem_t *	memory,
		uint32_t	memory_size,
		uint32_t	initial_count )

Create a Semaphore (using provided memory).

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_sem_mem_t)).
[in]	initial_count	Starting value of the resource counter.

Returns: Semaphore handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 243 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_sem_t));
    if (memory_size < sizeof(stk_sem_t))
        return nullptr;

    return (stk_sem_t *)new (memory->data) stk_sem_t(initial_count);
}

References stk_sem_mem_t::data, and STK_ASSERT.

◆ stk_sem_destroy()

void stk_sem_destroy ( stk_sem_t * sem )

Destroy a Semaphore.

Parameters

[in] sem Semaphore handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 253 of file stk_c_sync.cpp.

{
    if (sem != nullptr)
        sem->~stk_sem_t();
}

◆ stk_sem_signal()

void stk_sem_signal ( stk_sem_t * sem )

Signal/Release a semaphore resource.

Parameters

[in] sem Semaphore handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 266 of file stk_c_sync.cpp.

{
    STK_ASSERT(sem != nullptr);

    sem->handle.Signal();
}

References stk_sem_t::handle, stk::sync::Semaphore::Signal(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_sem_wait()

bool stk_sem_wait	(	stk_sem_t *	sem,
		int32_t	timeout )

Wait for a semaphore resource.

Parameters

[in]	sem	Semaphore handle.
[in]	timeout	Max time to wait in milliseconds.

Returns: True if resource acquired, False on timeout.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 259 of file stk_c_sync.cpp.

{
    STK_ASSERT(sem != nullptr);

    return sem->handle.Wait(timeout);
}

References stk_sem_t::handle, STK_ASSERT, and stk::sync::Semaphore::Wait().

Here is the call graph for this function:

◆ stk_sleep()

void stk_sleep ( uint32_t ticks )

Put current task to sleep (non-HRT kernels only).

Parameters

[in] ms Ticks to sleep.

Note: Unlike stk_delay_ms(), this function does not spin and allows the kernel to idle the CPU. When KERNEL_TICKLESS is active and all tasks are sleeping, the SysTick is suppressed and the CPU enters a low-power WFI state until the nearest wake-up deadline.; Unsupported in KERNEL_HRT mode; in HRT mode tasks sleep automatically according to their periodicity and workload, use stk_yield instead.

See also: stk_sleep_ms, stk_sleep_until, stk_ticks

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 329 of file stk_c.cpp.

329{ stk::Sleep(ticks); }

stk::Sleep

void Sleep(uint32_t ticks)

Put calling process into a sleep state.

Definition stk_helper.h:298

References stk::Sleep().

Here is the call graph for this function:

◆ stk_sleep_ms()

void stk_sleep_ms ( uint32_t ms )

Put current task to sleep (non-HRT kernels only).

Parameters

[in] ms Milliseconds to sleep.

Note: Unlike stk_delay_ms(), this function does not spin and allows the kernel to idle the CPU. When KERNEL_TICKLESS is active and all tasks are sleeping, the SysTick is suppressed and the CPU enters a low-power WFI state until the nearest wake-up deadline.; Unsupported in KERNEL_HRT mode; in HRT mode tasks sleep automatically according to their periodicity and workload, use stk_yield instead.

See also: stk_sleep, stk_sleep_until, stk_ticks

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 331 of file stk_c.cpp.

331{ stk::SleepMs(ms); }

stk::SleepMs

static void SleepMs(uint32_t ms)

Put calling process into a sleep state.

Definition stk_helper.h:311

References stk::SleepMs().

Here is the call graph for this function:

◆ stk_sleep_until()

void stk_sleep_until ( int64_t ts )

Put current task to sleep (non-HRT kernels only).

Parameters

[in] ts Absolute time, a deadline for a sleep period.

Note: Unlike stk_delay_ms(), this function does not spin and allows the kernel to idle the CPU. When KERNEL_TICKLESS is active and all tasks are sleeping, the SysTick is suppressed and the CPU enters a low-power WFI state until the nearest wake-up deadline.; Unsupported in KERNEL_HRT mode; in HRT mode tasks sleep automatically according to their periodicity and workload, use stk_yield instead.

See also: stk_sleep, stk_sleep_ms, stk_ticks

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 332 of file stk_c.cpp.

332{ stk::SleepUntil(ts); }

stk::SleepUntil

void SleepUntil(Ticks timestamp)

Put calling process into a sleep state until the specified timestamp.

Definition stk_helper.h:322

References stk::SleepUntil().

Here is the call graph for this function:

◆ stk_spinlock_create()

stk_spinlock_t * stk_spinlock_create	(	stk_spinlock_mem_t *	memory,
		uint32_t	memory_size )

Create a recursive SpinLock.

Parameters

[in]	memory	Pointer to static memory container.
[in]	memory_size	Size of the container (must be >= sizeof(stk_spinlock_mem_t)).

Returns: SpinLock handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 89 of file stk_c_sync.cpp.

{
    STK_ASSERT(memory != nullptr);
    STK_ASSERT(memory_size >= sizeof(stk_spinlock_t));
    if (memory_size < sizeof(stk_spinlock_t))
        return nullptr;

    return (stk_spinlock_t *)new (memory->data) stk_spinlock_t();
}

References stk_spinlock_mem_t::data, and STK_ASSERT.

◆ stk_spinlock_destroy()

void stk_spinlock_destroy ( stk_spinlock_t * lock )

Destroy the SpinLock.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 99 of file stk_c_sync.cpp.

{
    if (lock != nullptr)
        lock->~stk_spinlock_t();
}

◆ stk_spinlock_lock()

void stk_spinlock_lock ( stk_spinlock_t * lock )

Acquire the SpinLock (recursive).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 105 of file stk_c_sync.cpp.

{
    STK_ASSERT(lock != nullptr);
    lock->handle.Lock();
}

References stk_spinlock_t::handle, stk::sync::SpinLock::Lock(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_spinlock_trylock()

bool stk_spinlock_trylock ( stk_spinlock_t * lock )

Attempt to acquire the SpinLock immediately.

Returns: True if locked successfully, False otherwise.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 111 of file stk_c_sync.cpp.

{
    STK_ASSERT(lock != nullptr);
    return lock->handle.TryLock();
}

References stk_spinlock_t::handle, STK_ASSERT, and stk::sync::SpinLock::TryLock().

Here is the call graph for this function:

◆ stk_spinlock_unlock()

void stk_spinlock_unlock ( stk_spinlock_t * lock )

Release the SpinLock.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 117 of file stk_c_sync.cpp.

{
    STK_ASSERT(lock != nullptr);
    lock->handle.Unlock();
}

References stk_spinlock_t::handle, STK_ASSERT, and stk::sync::SpinLock::Unlock().

Here is the call graph for this function:

◆ stk_task_create_privileged()

stk_task_t * stk_task_create_privileged	(	stk_task_entry_t	entry,
		void *	arg,
		stk_word_t *	stack,
		uint32_t	stack_size )

Create privileged-mode (kernel-mode) task.

Parameters

[in]	entry	Task entry function.
[in]	arg	Argument passed to entry function.
[in]	stack	Pointer to stack buffer (array of stk_word_t).
[in]	stack_size	Number of elements (words) in the stack buffer.

Returns: Task handle (static storage in static kernels, heap in dynamic).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 260 of file stk_c.cpp.

{
    STK_ASSERT(entry != nullptr);
    STK_ASSERT(stack != nullptr);
    STK_ASSERT(stack_size != 0);

    return reinterpret_cast<stk_task_t *>(AllocateTask(entry, arg, stack, stack_size, ACCESS_PRIVILEGED));
}

References stk::ACCESS_PRIVILEGED, AllocateTask(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_task_create_user()

stk_task_t * stk_task_create_user	(	stk_task_entry_t	entry,
		void *	arg,
		stk_word_t *	stack,
		uint32_t	stack_size )

Create user-mode task.

Parameters

[in]	entry	Task entry function.
[in]	arg	Argument passed to entry function.
[in]	stack	Pointer to stack buffer (array of stk_word_t).
[in]	stack_size	Number of elements (words) in the stack buffer.

Returns: Task handle.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 272 of file stk_c.cpp.

{
    STK_ASSERT(entry != nullptr);
    STK_ASSERT(stack != nullptr);
    STK_ASSERT(stack_size != 0);

    return reinterpret_cast<stk_task_t *>(AllocateTask(entry, arg, stack, stack_size, ACCESS_USER));
}

References stk::ACCESS_USER, AllocateTask(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_task_destroy()

void stk_task_destroy ( stk_task_t * task )

Destroy dynamically created task object.

Parameters

[in] task Task handle.

Note: Only valid for tasks created with dynamic creation functions. Task must no longer be scheduled (must have exited or been removed).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 313 of file stk_c.cpp.

{
    STK_ASSERT(task != nullptr);

    FreeTask(task);
}

References FreeTask(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_task_set_id()

void stk_task_set_id	(	stk_task_t *	task,
		uint32_t	tid )

Assign application-defined task ID (for tracing/debugging).

Parameters

[in]	task	Task handle.
[in]	tid	Arbitrary 32-bit task identifier.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 299 of file stk_c.cpp.

{
    STK_ASSERT(task != nullptr);

    task->handle.SetId(tid);
}

References stk_task_t::handle, TaskWrapper::SetId(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_task_set_name()

void stk_task_set_name	(	stk_task_t *	task,
		const char *	tname )

Assign human-readable task name (for tracing/debugging).

Parameters

[in]	task	Task handle.
[in]	tname	Null-terminated string (may be NULL).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 306 of file stk_c.cpp.

{
    STK_ASSERT(task != nullptr);

    task->handle.SetName(tname);
}

References stk_task_t::handle, TaskWrapper::SetName(), and STK_ASSERT.

Here is the call graph for this function:

◆ stk_task_set_priority()

void stk_task_set_priority	(	stk_task_t *	task,
		uint8_t	priority )

Set task priority (used only by Fixed Priority scheduler).

Parameters

[in]	task	Task handle.
[in]	priority	Priority level [0 = lowest … 31 = highest].

Note: Must be called before adding task to kernel.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 292 of file stk_c.cpp.

{
    STK_ASSERT(priority <= 31);

    stk_task_set_weight(task, priority);
}

References STK_ASSERT, and stk_task_set_weight().

Here is the call graph for this function:

◆ stk_task_set_weight()

void stk_task_set_weight	(	stk_task_t *	task,
		uint32_t	weight )

Set task weight (used only by Smooth Weighted Round Robin).

Parameters

[in]	task	Task handle.
[in]	weight	Positive weight value (recommended 1–16777215).

Note: Must be called before adding task to kernel.

See also: SwitchStrategySmoothWeightedRoundRobin.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 284 of file stk_c.cpp.

{
    STK_ASSERT(task != nullptr);
    STK_ASSERT(weight != 0);

    task->handle.SetWeight(weight);
}

References stk_task_t::handle, TaskWrapper::SetWeight(), and STK_ASSERT.

Referenced by stk_task_set_priority().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stk_tick_resolution()

int32_t stk_tick_resolution ( void )

Returns how many microseconds correspond to one kernel tick.

Returns: Tick resolution in microseconds.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 325 of file stk_c.cpp.

325{ return stk::GetTickResolution(); }

stk::GetTickResolution

int32_t GetTickResolution()

Get number of microseconds in one tick.

Definition stk_helper.h:258

References stk::GetTickResolution().

Here is the call graph for this function:

◆ stk_ticks()

int64_t stk_ticks ( void )

Returns number of ticks elapsed since kernel start.

Returns: Tick count (monotonically increasing).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 324 of file stk_c.cpp.

324{ return stk::GetTicks(); }

stk::GetTicks

Ticks GetTicks()

Get number of ticks elapsed since kernel start.

Definition stk_helper.h:248

References stk::GetTicks().

Here is the call graph for this function:

◆ stk_ticks_from_ms()

int64_t stk_ticks_from_ms ( int64_t msec )

Get ticks from milliseconds using current kernel tick resolution.

Parameters

[in] msec Milliseconds to convert.

Returns: Ticks.

Note: Equivalent to stk::GetTicksFromMsec(msec). Requires the kernel to be initialized before calling (stk_tick_resolution() must return a valid non-zero value).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 327 of file stk_c.cpp.

327{ return stk_ticks_from_ms_r(msec, stk::GetTickResolution()); }

stk_ticks_from_ms_r

static int64_t stk_ticks_from_ms_r(int64_t msec, int32_t resolution)

Get ticks from milliseconds using an explicit tick resolution.

Definition stk_c.h:378

References stk::GetTickResolution(), and stk_ticks_from_ms_r().

Here is the call graph for this function:

◆ stk_ticks_from_ms_r()

int64_t stk_ticks_from_ms_r	(	int64_t	msec,
		int32_t	resolution )

inlinestatic

Get ticks from milliseconds using an explicit tick resolution.

Parameters

[in]	msec	Milliseconds to convert.
[in]	resolution	Microseconds per tick (see stk_tick_resolution()).

Returns: Ticks.

Note: Equivalent to stk::GetTicksFromMsec(msec, resolution). Use this overload when the resolution is already cached to avoid a repeated call to stk_tick_resolution().

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 378 of file stk_c.h.

{
    return msec * 1000 / resolution;
}

Referenced by stk_ticks_from_ms().

Here is the caller graph for this function:

◆ stk_tid()

stk_tid_t stk_tid ( void )

Returns current task/thread ID (the value set by stk_task_set_id).

Returns: Task identifier (0 if not set).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 323 of file stk_c.cpp.

323{ return stk::GetTid(); }

stk::GetTid

TId GetTid()

Get task/thread Id of the calling task.

Definition stk_helper.h:217

References stk::GetTid().

Here is the call graph for this function:

◆ stk_time_now_ms()

int64_t stk_time_now_ms ( void )

Returns current time in milliseconds since kernel start.

Returns: Time in milliseconds.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 326 of file stk_c.cpp.

326{ return stk::GetTimeNowMs(); }

stk::GetTimeNowMs

static int64_t GetTimeNowMs()

Get current time in milliseconds since kernel start.

Definition stk_helper.h:281

References stk::GetTimeNowMs().

Here is the call graph for this function:

◆ stk_tls_get()

void * stk_tls_get ( void )

Get thread-local pointer (platform-specific slot).

Returns: Pointer previously stored with stk_tls_set() (NULL if never set).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 338 of file stk_c.cpp.

{
    return hw::GetTlsPtr<void *>();
}

References stk::hw::GetTlsPtr().

Here is the call graph for this function:

◆ stk_tls_set()

void stk_tls_set ( void * ptr )

Set thread-local pointer.

Parameters

[in] ptr Pointer value to store for the current task/thread.

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 343 of file stk_c.cpp.

{
    hw::SetTlsPtr(ptr);
}

References stk::hw::SetTlsPtr().

Here is the call graph for this function:

◆ stk_yield()

void stk_yield ( void )

Voluntarily give up CPU to another ready task (cooperative yield).

Examples: D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 333 of file stk_c.cpp.

333{ stk::Yield(); }

stk::Yield

void Yield()

Notify scheduler to switch to the next runnable task.

Definition stk_helper.h:331

References stk::Yield().

Here is the call graph for this function:

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ __stk_c_stack_attr

◆ STK_C_ASSERT

◆ STK_C_CPU_COUNT

◆ STK_C_KERNEL_MAX_TASKS

◆ STK_CV_IMPL_SIZE

◆ STK_EF_ERROR_ISR

◆ STK_EF_ERROR_MASK

◆ STK_EF_ERROR_PARAMETER

◆ STK_EF_ERROR_TIMEOUT

◆ STK_EF_IMPL_SIZE

◆ STK_EF_OPT_NO_CLEAR

◆ STK_EF_OPT_WAIT_ALL

◆ STK_EF_OPT_WAIT_ANY

◆ STK_EVENT_IMPL_SIZE

◆ STK_MUTEX_IMPL_SIZE

◆ STK_NO_WAIT

◆ STK_PERIODICITY_DEFAULT

◆ STK_PIPE_IMPL_SIZE

◆ STK_PIPE_SIZE

◆ STK_RWMUTEX_IMPL_SIZE

◆ STK_SEM_IMPL_SIZE

◆ STK_SPINLOCK_IMPL_SIZE

◆ STK_SYNC_DEBUG_NAMES

◆ STK_TLS_GET

◆ STK_TLS_SET

◆ STK_WAIT_INFINITE

Typedef Documentation

◆ EKernelState

◆ stk_cv_mem_t

◆ stk_cv_t

◆ stk_ef_mem_t

◆ stk_ef_t

◆ stk_event_mem_t

◆ stk_event_t

◆ stk_kernel_t

◆ stk_mutex_mem_t

◆ stk_mutex_t

◆ stk_pipe_mem_t

◆ stk_pipe_t

◆ stk_rwmutex_mem_t

◆ stk_rwmutex_t

◆ stk_sem_mem_t

◆ stk_sem_t

◆ stk_spinlock_t

◆ stk_task_entry_t

◆ stk_task_t

◆ stk_tid_t

◆ stk_word_t

Enumeration Type Documentation

◆ _EKernelState

Function Documentation

◆ stk_critical_section_enter()

◆ stk_critical_section_exit()

◆ stk_cv_create()

◆ stk_cv_destroy()

◆ stk_cv_notify_all()

◆ stk_cv_notify_one()

◆ stk_cv_wait()

◆ stk_delay()

◆ stk_delay_ms()

◆ stk_ef_clear()

◆ stk_ef_create()

◆ stk_ef_destroy()

◆ stk_ef_get()

◆ stk_ef_is_error()

◆ stk_ef_set()

◆ stk_ef_trywait()

◆ stk_ef_wait()

◆ stk_event_create()

◆ stk_event_destroy()

◆ stk_event_pulse()

◆ stk_event_reset()

◆ stk_event_set()
