stk::sync::Mutex Class Reference

Recursive mutex primitive that allows the same thread to acquire the lock multiple times. More...

#include <stk_sync_mutex.h>

Inheritance diagram for stk::sync::Mutex:

Collaboration diagram for stk::sync::Mutex:

Public Member Functions
	Mutex ()
	Constructor.
	~Mutex ()
	Destructor.
bool	TimedLock (Timeout timeout)
	Acquire lock.
void	Lock ()
	Acquire lock.
bool	TryLock ()
	Acquire the lock.
void	Unlock ()
	Release lock.
void	SetTraceName (const char *name)
	Set name.
const char *	GetTraceName () const
	Get name.

Private Types
typedef DLHeadType	ListHeadType
	List head type for ISyncObject elements.
typedef DLEntryType	ListEntryType
	List entry type of ISyncObject elements.
typedef DListEntry< ISyncObject, _ClosedLoop >	DLEntryType
	Convenience alias for this entry type. Used to avoid repeating the full template spelling.
typedef DListHead< ISyncObject, _ClosedLoop >	DLHeadType
	Convenience alias for the corresponding list head type.

Private Member Functions
	STK_NONCOPYABLE_CLASS (Mutex)
virtual void	AddWaitObject (IWaitObject *wobj)
	Called by kernel when a new task starts waiting on this event.
virtual void	RemoveWaitObject (IWaitObject *wobj)
	Called by kernel when a waiting task is being removed (timeout expired, wait aborted, task terminated etc.).
virtual bool	Tick (Timeout elapsed_ticks)
	Called by kernel on every system tick to handle timeout logic of waiting tasks.
void	WakeOne ()
	Wake the first task in the wait list (FIFO order).
void	WakeAll ()
	Wake all tasks currently in the wait list.
DLHeadType *	GetHead () const
	Get the list head this entry currently belongs to.
DLEntryType *	GetNext () const
	Get the next entry in the list.
DLEntryType *	GetPrev () const
	Get the previous entry in the list.
bool	IsLinked () const
	Check whether this entry is currently a member of any list.
	operator ISyncObject * ()
	Implicit conversion to a mutable pointer to the host object (T).
	operator const ISyncObject * () const
	Implicit conversion to a const pointer to the host object (T).
void	Link (DLHeadType *head, DLEntryType *next, DLEntryType *prev)
	Wire this entry into a list between prev and next.
void	Unlink ()
	Remove this entry from its current list.

Private Attributes
TId	m_owner_tid
	thread id of the current owner
uint16_t	m_recursion_count
	recursion depth
IWaitObject::ListHeadType	m_wait_list
	tasks blocked on this object
DLHeadType *	m_head
	Owning list head, or NULL when the entry is not linked.
DLEntryType *	m_next
	Next entry in the list, or NULL (open list boundary) / first entry (closed loop).
DLEntryType *	m_prev
	Previous entry in the list, or NULL (open list boundary) / last entry (closed loop).

Static Private Attributes
static const uint16_t	RECURSION_MAX = 0xFFFEu
	maximum nesting depth

Detailed Description

Recursive mutex primitive that allows the same thread to acquire the lock multiple times.

Recursive mutex tracks ownership and a recursion count. If the owning thread calls Lock() again, the count is incremented and the call returns immediately without blocking. The lock is only fully released when Unlock() has been called an equal number of times.

// Example: Recursive locking in nested methods
stk::sync::Mutex g_ResourceMtx;

void Method_Internal() {
    // second acquisition (recursion count = 2)
    g_ResourceMtx.Lock();
    // ... perform internal logic ...
    g_ResourceMtx.Unlock();
}

void Method_Public() {
    // first acquisition (recursion count = 1)
    if (g_ResourceMtx.TimedLock(100)) {
        // safe to call: same thread already owns the lock
        Method_Internal();
        g_ResourceMtx.Unlock();
    }
}

Note

Only available when kernel is compiled with KERNEL_SYNC mode enabled.

See also

ISyncObject, IWaitObject, IKernelService::Wait

Definition at line 54 of file stk_sync_mutex.h.

Member Typedef Documentation

DLEntryType

typedef DListEntry<ISyncObject, _ClosedLoop> stk::util::DListEntry< ISyncObject, _ClosedLoop >::DLEntryType

inherited

Convenience alias for this entry type. Used to avoid repeating the full template spelling.

Definition at line 70 of file stk_linked_list.h.

DLHeadType

typedef DListHead<ISyncObject, _ClosedLoop> stk::util::DListEntry< ISyncObject, _ClosedLoop >::DLHeadType

inherited

Convenience alias for the corresponding list head type.

Definition at line 75 of file stk_linked_list.h.

ListEntryType

typedef DLEntryType stk::ISyncObject::ListEntryType

inherited

List entry type of ISyncObject elements.

Definition at line 313 of file stk_common.h.

ListHeadType

typedef DLHeadType stk::ISyncObject::ListHeadType

inherited

List head type for ISyncObject elements.

Definition at line 308 of file stk_common.h.

Constructor & Destructor Documentation

Mutex()

stk::sync::Mutex::Mutex ( )

inlineexplicit

Constructor.

Definition at line 59 of file stk_sync_mutex.h.

                     : m_owner_tid(TID_NONE), m_recursion_count(0U)
    {}

References m_owner_tid, m_recursion_count, and stk::TID_NONE.

Referenced by STK_NONCOPYABLE_CLASS().

Here is the caller graph for this function:

~Mutex()

stk::sync::Mutex::~Mutex ( )

inline

Destructor.

Note

If tasks are still waiting at destruction time it is considered a logical error (dangling waiters). An assertion is triggered in debug builds.

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

Definition at line 67 of file stk_sync_mutex.h.

    {
        STK_ASSERT(m_wait_list.IsEmpty()); // API contract: must not be destroyed with waiting tasks
    }

References stk::ISyncObject::m_wait_list, and STK_ASSERT.

Member Function Documentation

AddWaitObject()

virtual void stk::ISyncObject::AddWaitObject ( IWaitObject * wobj )

inlinevirtualinherited

Called by kernel when a new task starts waiting on this event.

Parameters

[in]

wobj

Wait object representing blocked task.

Definition at line 318 of file stk_common.h.

    {
        STK_ASSERT(wobj->GetHead() == nullptr);
        m_wait_list.LinkBack(wobj);
    }

References stk::util::DListEntry< T, _ClosedLoop >::GetHead(), m_wait_list, and STK_ASSERT.

Referenced by stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::WaitObject::SetupWait().

Here is the call graph for this function:

Here is the caller graph for this function:

GetHead()

DLHeadType * stk::util::DListEntry< ISyncObject, _ClosedLoop >::GetHead ( ) const

inlineinherited

Get the list head this entry currently belongs to.

Returns

Pointer to the owning DListHead, or NULL if the entry is not linked.

Definition at line 80 of file stk_linked_list.h.

{ return m_head; }

GetNext()

DLEntryType * stk::util::DListEntry< ISyncObject, _ClosedLoop >::GetNext ( ) const

inlineinherited

Get the next entry in the list.

Returns

Pointer to the next DListEntry, or NULL if this is the last entry (open list) or the first entry (closed loop, where next wraps to first).

Note

In a closed loop (_ClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 88 of file stk_linked_list.h.

{ return m_next; }

GetPrev()

DLEntryType * stk::util::DListEntry< ISyncObject, _ClosedLoop >::GetPrev ( ) const

inlineinherited

Get the previous entry in the list.

Returns

Pointer to the previous DListEntry, or NULL if this is the first entry (open list) or the last entry (closed loop, where prev wraps to last).

Note

In a closed loop (_ClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 96 of file stk_linked_list.h.

{ return m_prev; }

GetTraceName()

const char * stk::ITraceable::GetTraceName ( ) const

inlineinherited

Get name.

Returns

Name string, or NULL if not set or if STK_SYNC_DEBUG_NAMES is 0.

Definition at line 278 of file stk_common.h.

    {
    #if STK_SYNC_DEBUG_NAMES
        return m_trace_name;
    #else
        return nullptr;
    #endif
    }

IsLinked()

bool stk::util::DListEntry< ISyncObject, _ClosedLoop >::IsLinked ( ) const

inlineinherited

Check whether this entry is currently a member of any list.

Returns

true if linked (m_head != NULL); false otherwise.

Definition at line 101 of file stk_linked_list.h.

{ return (GetHead() != nullptr); }

Link()

void stk::util::DListEntry< ISyncObject, _ClosedLoop >::Link ( DLHeadType * head, DLEntryType * next, DLEntryType * prev )

inlineprivateinherited

Wire this entry into a list between prev and next.

Parameters

[in]	head	The owning DListHead. Stored as a back-pointer for IsLinked() and ownership checks.
[in]	next	The entry that will follow this one, or NULL if this becomes the last entry.
[in]	prev	The entry that will precede this one, or NULL if this becomes the first entry.

Note

Called exclusively by DListHead::Link(). Assumes the entry is not currently linked. Updates the neighbours' forward/back pointers to splice this entry in.

Definition at line 137 of file stk_linked_list.h.

    {
        m_head = head;
        m_next = next;
        m_prev = prev;

        if (m_prev != nullptr)
            m_prev->m_next = this;

        if (m_next != nullptr)
            m_next->m_prev = this;
    }

Lock()

void stk::sync::Mutex::Lock ( )

inlinevirtual

Acquire lock.

Warning

ISR-unsafe.

Implements stk::IMutex.

Definition at line 83 of file stk_sync_mutex.h.

{ (void)TimedLock(WAIT_INFINITE); }

References TimedLock(), and stk::WAIT_INFINITE.

Referenced by stk_mutex_lock().

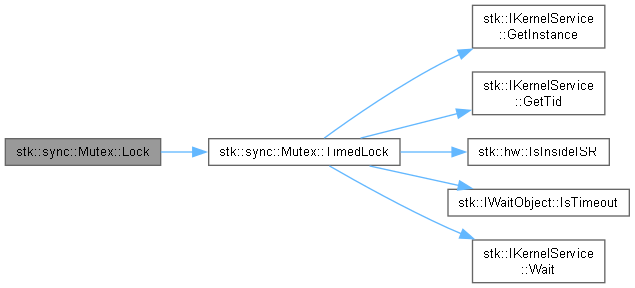

Here is the call graph for this function:

Here is the caller graph for this function:

operator const ISyncObject *()

stk::util::DListEntry< ISyncObject, _ClosedLoop >::operator const ISyncObject * ( ) const

inlineinherited

Implicit conversion to a const pointer to the host object (T).

Note

Safe because T must derive from DListEntry<T, _ClosedLoop>. Eliminates the need for explicit static_cast at call sites.

MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 115 of file stk_linked_list.h.

{ return static_cast<const T *>(this); }

operator ISyncObject *()

stk::util::DListEntry< ISyncObject, _ClosedLoop >::operator ISyncObject* ( )

inlineinherited

Implicit conversion to a mutable pointer to the host object (T).

Note

Safe because T must derive from DListEntry<T, _ClosedLoop>. Eliminates the need for explicit static_cast at call sites.

MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 108 of file stk_linked_list.h.

{ return static_cast<T *>(this); }

RemoveWaitObject()

virtual void stk::ISyncObject::RemoveWaitObject ( IWaitObject * wobj )

inlinevirtualinherited

Called by kernel when a waiting task is being removed (timeout expired, wait aborted, task terminated etc.).

Parameters

[in]

wobj

Wait object to remove from the wait list.

Reimplemented in stk::sync::Event.

Definition at line 327 of file stk_common.h.

    {
        STK_ASSERT(wobj->GetHead() == &m_wait_list);
        m_wait_list.Unlink(wobj);
    }

References stk::util::DListEntry< T, _ClosedLoop >::GetHead(), m_wait_list, and STK_ASSERT.

Referenced by stk::sync::Event::RemoveWaitObject().

Here is the call graph for this function:

Here is the caller graph for this function:

SetTraceName()

void stk::ITraceable::SetTraceName ( const char * name )

inlineinherited

Set name.

Parameters

[in]

name

Null-terminated string or NULL.

Note

If STK_SYNC_DEBUG_NAMES is 0 then calling this function has no effect.

Definition at line 266 of file stk_common.h.

    {
    #if STK_SYNC_DEBUG_NAMES
        m_trace_name = name;
    #else
        (void)name;
    #endif
    }

STK_NONCOPYABLE_CLASS()

stk::sync::Mutex::STK_NONCOPYABLE_CLASS ( Mutex )

private

References Mutex().

Here is the call graph for this function:

Tick()

bool stk::ISyncObject::Tick ( Timeout elapsed_ticks )

inlinevirtualinherited

Called by kernel on every system tick to handle timeout logic of waiting tasks.

Implementation of ISyncObject::Tick, see ISyncObject. Placed here as it depends on hw namespace.

Parameters

[in]

elapsed_ticks

Number of ticks elapsed between this and previous calls, in case of KERNEL_TICKLESS mode this value can be >1, for non-tickless mode it is always 1.

Returns

true if this synchronization object still has waiters with a finite timeout and requires further tick calls. false if the wait list is empty or all remaining waiters have infinite timeouts, signaling to the kernel that it may stop calling Tick() for this object until a new waiter is added.

Note

When this method returns false, the kernel unlinks this object from its active sync list. It will be re-linked automatically when the next waiter is added via AddWaitObject().

Definition at line 467 of file stk_arch.h.

{
    // note: ScopedCriticalSection usage
    //
    // Single-core: no critical section needed - Tick() runs inside the
    // SysTick ISR which already executes with interrupts disabled, making
    // re-entrancy impossible on the local core.
    //
    // Multi-core: critical section is required because the tick handler on
    // each core may call Tick() concurrently for the same Semaphore instance,
    // and ISyncObject::Tick() is not re-entrant.
#if (STK_ARCH_CPU_COUNT > 1)
    hw::CriticalSection::ScopedLock cs_;
#endif

    IWaitObject *itr = static_cast<IWaitObject *>(m_wait_list.GetFirst());

    while (itr != nullptr)
    {
        IWaitObject *next = static_cast<IWaitObject *>(itr->GetNext());

        if (!itr->Tick(elapsed_ticks))
            itr->Wake(true);

        itr = next;
    }

    return !m_wait_list.IsEmpty();
}

References stk::util::DListEntry< T, _ClosedLoop >::GetNext(), m_wait_list, stk::IWaitObject::Tick(), and stk::IWaitObject::Wake().

Here is the call graph for this function:

TimedLock()

bool stk::sync::Mutex::TimedLock ( Timeout timeout )

inline

Acquire lock.

Parameters

[in]

timeout

Maximum time to wait (ticks).

Note

Maximum number of recursive locks must not exceed 0xFFFEU.

Warning

ISR-unsafe.

Returns

True if lock acquired, false if timeout occurred.

Definition at line 109 of file stk_sync_mutex.h.

{
    STK_ASSERT(!hw::IsInsideISR()); // API contract: caller must not be in ISR

    IKernelService *svc = IKernelService::GetInstance();
    TId current_tid = svc->GetTid();

    ScopedCriticalSection cs_;

    // already owned by the calling thread (recursive path)
    if ((m_recursion_count != 0U) && (m_owner_tid == current_tid))
    {
        STK_ASSERT(m_recursion_count < RECURSION_MAX); // API contract: caller must not exceed max recursion depth

        m_recursion_count = static_cast<uint16_t>(m_recursion_count + 1U);
        return true;
    }

    // mutex is free (fast path)
    if (m_recursion_count == 0U)
    {
        // kernel invariant: counter is zero so owner must be TID_NONE
        if (m_owner_tid != TID_NONE)
            STK_KERNEL_PANIC(KERNEL_PANIC_ASSERT);

        m_recursion_count = 1U;
        m_owner_tid       = current_tid;
        __stk_full_memfence();

        return true;
    }

    // try lock behavior
    if (timeout == NO_WAIT)
        return false;

    // mutex owned by another thread (slow path/blocking)
    if (svc->Wait(this, &cs_, timeout)->IsTimeout())
        return false;

    // kernel invariant: if either condition is false, the low-level lock and the
    // recursion counter are out of sync, this is an internal defect, not a caller error
    if ((m_owner_tid != current_tid) || (m_recursion_count != 1U))
        STK_KERNEL_PANIC(KERNEL_PANIC_ASSERT);

    return true;
}

References stk::IKernelService::GetInstance(), stk::IKernelService::GetTid(), stk::hw::IsInsideISR(), stk::IWaitObject::IsTimeout(), stk::KERNEL_PANIC_ASSERT, m_owner_tid, m_recursion_count, stk::NO_WAIT, RECURSION_MAX, STK_ASSERT, STK_KERNEL_PANIC, stk::TID_NONE, and stk::IKernelService::Wait().

Referenced by Lock(), stk_mutex_timed_lock(), and TryLock().

Here is the call graph for this function:

Here is the caller graph for this function:

TryLock()

bool stk::sync::Mutex::TryLock ( )

inline

Acquire the lock.

Warning

ISR-unsafe.

Returns

True if lock acquired, false if lock is already acquired by another task.

Definition at line 89 of file stk_sync_mutex.h.

{ return TimedLock(NO_WAIT); }

References stk::NO_WAIT, and TimedLock().

Referenced by stk_mutex_trylock().

Here is the call graph for this function:

Here is the caller graph for this function:

Unlink()

void stk::util::DListEntry< ISyncObject, _ClosedLoop >::Unlink ( )

inlineprivateinherited

Remove this entry from its current list.

Note

Called exclusively by DListHead::Unlink(). Patches the neighbours' pointers to bridge over this entry, then clears m_head, m_next, and m_prev to NULL so the entry is in a clean unlinked state.

Does not update DListHead::m_count or m_first / m_last — those are the responsibility of the calling DListHead::Unlink().

Definition at line 157 of file stk_linked_list.h.

    {
        if (m_prev != nullptr)
            m_prev->m_next = m_next;

        if (m_next != nullptr)
            m_next->m_prev = m_prev;

        m_head = nullptr;
        m_next = nullptr;
        m_prev = nullptr;
    }

Unlock()

void stk::sync::Mutex::Unlock ( )

inlinevirtual

Release lock.

Warning

ISR-unsafe.

Implements stk::IMutex.

Definition at line 161 of file stk_sync_mutex.h.

{
    STK_ASSERT(!hw::IsInsideISR());      // API contract: caller must not be in ISR
    STK_ASSERT(m_owner_tid == GetTid()); // API contract: caller must own the lock
    STK_ASSERT(m_recursion_count != 0U); // API contract: must have matching Lock()

    ScopedCriticalSection cs_;

    m_recursion_count = static_cast<uint16_t>(m_recursion_count - 1U);

    if (m_recursion_count == 0U)
    {
        if (!m_wait_list.IsEmpty())
        {
            // pass ownership directly to the first waiter (FIFO order)
            IWaitObject *waiter = static_cast<IWaitObject *>(m_wait_list.GetFirst());

            // transfer ownership to the waiter
            m_recursion_count = 1U;
            m_owner_tid       = waiter->GetTid();
            __stk_full_memfence();

            waiter->Wake(false);
        }
        else
        {
            // free completely if there are no waiters
            m_owner_tid = TID_NONE;
            __stk_full_memfence();
        }
    }
}

References stk::GetTid(), stk::IWaitObject::GetTid(), stk::hw::IsInsideISR(), m_owner_tid, m_recursion_count, stk::ISyncObject::m_wait_list, STK_ASSERT, stk::TID_NONE, and stk::IWaitObject::Wake().

Referenced by stk_mutex_unlock().

Here is the call graph for this function:

Here is the caller graph for this function:

WakeAll()

void stk::ISyncObject::WakeAll ( )

inlineprotectedinherited

Wake all tasks currently in the wait list.

Note

Each woken task is notified with timeout=false, indicating a successful signal (not a timeout expiry).

Does nothing if no tasks are currently waiting.

Definition at line 367 of file stk_common.h.

    {
        while (!m_wait_list.IsEmpty())
            static_cast<IWaitObject *>(m_wait_list.GetFirst())->Wake(false);
    }

References m_wait_list, and stk::IWaitObject::Wake().

Referenced by stk::sync::ConditionVariable::NotifyAll(), stk::sync::Event::Pulse(), stk::sync::Event::Set(), and stk::test::SyncObjectMock::WakeAll().

Here is the call graph for this function:

Here is the caller graph for this function:

WakeOne()

void stk::ISyncObject::WakeOne ( )

inlineprotectedinherited

Wake the first task in the wait list (FIFO order).

Note

The woken task is notified with timeout=false, indicating a successful signal (not a timeout expiry).

Does nothing if no tasks are currently waiting.

Definition at line 357 of file stk_common.h.

    {
        if (!m_wait_list.IsEmpty())
            static_cast<IWaitObject *>(m_wait_list.GetFirst())->Wake(false);
    }

References m_wait_list, and stk::IWaitObject::Wake().

Referenced by stk::sync::ConditionVariable::NotifyOne(), stk::sync::Event::Pulse(), stk::sync::Event::Set(), stk::sync::Semaphore::Signal(), and stk::test::SyncObjectMock::WakeOne().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_head

DLHeadType* stk::util::DListEntry< ISyncObject, _ClosedLoop >::m_head

privateinherited

Owning list head, or NULL when the entry is not linked.

Definition at line 170 of file stk_linked_list.h.

m_next

DLEntryType* stk::util::DListEntry< ISyncObject, _ClosedLoop >::m_next

privateinherited

Next entry in the list, or NULL (open list boundary) / first entry (closed loop).

Definition at line 171 of file stk_linked_list.h.

m_owner_tid

TId stk::sync::Mutex::m_owner_tid

private

thread id of the current owner

Definition at line 101 of file stk_sync_mutex.h.

Referenced by Mutex(), TimedLock(), and Unlock().

m_prev

DLEntryType* stk::util::DListEntry< ISyncObject, _ClosedLoop >::m_prev

privateinherited

Previous entry in the list, or NULL (open list boundary) / last entry (closed loop).

Definition at line 172 of file stk_linked_list.h.

m_recursion_count

uint16_t stk::sync::Mutex::m_recursion_count

private

recursion depth

Definition at line 102 of file stk_sync_mutex.h.

Referenced by Mutex(), TimedLock(), and Unlock().

m_wait_list

IWaitObject::ListHeadType stk::ISyncObject::m_wait_list

protectedinherited

tasks blocked on this object

Definition at line 373 of file stk_common.h.

Referenced by AddWaitObject(), ISyncObject(), stk::sync::Event::Pulse(), RemoveWaitObject(), stk::sync::Semaphore::Signal(), Tick(), stk::sync::Mutex::Unlock(), WakeAll(), WakeOne(), stk::sync::ConditionVariable::~ConditionVariable(), stk::sync::Event::~Event(), stk::sync::Mutex::~Mutex(), and stk::sync::Semaphore::~Semaphore().

RECURSION_MAX

const uint16_t stk::sync::Mutex::RECURSION_MAX = 0xFFFEu

staticprivate

maximum nesting depth

Definition at line 99 of file stk_sync_mutex.h.

Referenced by TimedLock().

---

The documentation for this class was generated from the following file:

• stk_sync_mutex.h
