stk::test::TaskMockW< _Weight, _AccessMode > Class Template Reference

Task mock for SwitchStrategySmoothWeightedRoundRobin and similar algorithms. More...

#include <stktest.h>

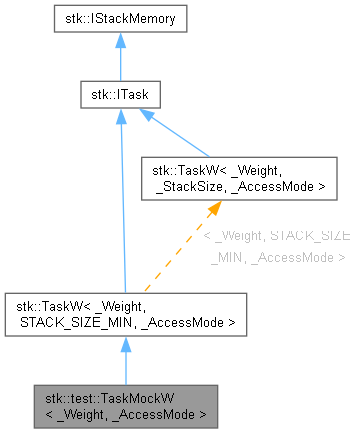

Inheritance diagram for stk::test::TaskMockW< _Weight, _AccessMode >:

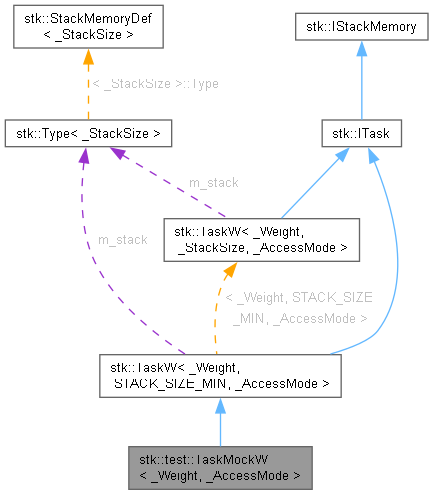

Collaboration diagram for stk::test::TaskMockW< _Weight, _AccessMode >:

Public Types
enum

Public Member Functions
Word *	GetStack () const
	Get pointer to the stack memory.
size_t	GetStackSize () const
	Get number of elements of the stack memory array.
size_t	GetStackSizeBytes () const
	Get size of the memory in bytes.
EAccessMode	GetAccessMode () const
	Get hardware access mode of the user task.
virtual void	OnDeadlineMissed (uint32_t duration)
	Hard Real-Time mode is unsupported for weighted tasks. Triggers an assertion if called.
virtual int32_t	GetWeight () const
	Returns the compile-time weight _Weight.
virtual TId	GetId () const
	Get object's own address as its Id. Unique per task instance, requires no manual assignment.
virtual const char *	GetTraceName () const
	Override in subclass to supply a name for SEGGER SystemView tracing. Returns NULL by default.

Private Member Functions
void	Run ()
	Entry point of the user task.

Private Attributes
StackMemoryDef< _StackSize >::Type	m_stack
	Stack memory region, 16-byte aligned.

Detailed Description

template<int32_t _Weight, EAccessMode _AccessMode>
class stk::test::TaskMockW< _Weight, _AccessMode >

Task mock for SwitchStrategySmoothWeightedRoundRobin and similar algorithms.

Note

QEMU allocates small stack for the function, therefore stack size is limited to STACK_SIZE_MIN for tests to pass (256 was causing a hard fault).

Definition at line 356 of file stktest.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

inherited

Definition at line 119 of file stk_helper.h.

{ STACK_SIZE = _StackSize };

Member Function Documentation

GetAccessMode()

EAccessMode stk::TaskW< _Weight, _StackSize, _AccessMode >::GetAccessMode ( ) const

inlinevirtualinherited

Get hardware access mode of the user task.

Implements stk::ITask.

Definition at line 124 of file stk_helper.h.

{ return _AccessMode; }

GetId()

virtual TId stk::TaskW< _Weight, _StackSize, _AccessMode >::GetId ( ) const

inlinevirtualinherited

Get object's own address as its Id. Unique per task instance, requires no manual assignment.

Implements stk::ITask.

Definition at line 137 of file stk_helper.h.

{ return hw::PtrToWord(this); }

GetStack()

Word * stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStack ( ) const

inlinevirtualinherited

Get pointer to the stack memory.

Implements stk::IStackMemory.

Definition at line 121 of file stk_helper.h.

{ return const_cast<Word *>(m_stack); }

GetStackSize()

size_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStackSize ( ) const

inlinevirtualinherited

Get number of elements of the stack memory array.

Implements stk::IStackMemory.

Definition at line 122 of file stk_helper.h.

{ return _StackSize; }

GetStackSizeBytes()

size_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStackSizeBytes ( ) const

inlinevirtualinherited

Get size of the memory in bytes.

Implements stk::IStackMemory.

Definition at line 123 of file stk_helper.h.

{ return _StackSize * sizeof(Word); }

GetTraceName()

virtual const char * stk::TaskW< _Weight, _StackSize, _AccessMode >::GetTraceName ( ) const

inlinevirtualinherited

Override in subclass to supply a name for SEGGER SystemView tracing. Returns NULL by default.

Implements stk::ITask.

Definition at line 141 of file stk_helper.h.

{ return nullptr; }

GetWeight()

virtual int32_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetWeight ( ) const

inlinevirtualinherited

Returns the compile-time weight _Weight.

Implements stk::ITask.

Definition at line 133 of file stk_helper.h.

{ return _Weight; }

OnDeadlineMissed()

virtual void stk::TaskW< _Weight, _StackSize, _AccessMode >::OnDeadlineMissed ( uint32_t duration )

inlinevirtualinherited

Hard Real-Time mode is unsupported for weighted tasks. Triggers an assertion if called.

Warning

Do not use TaskW with KERNEL_HRT. Use Task instead.

Implements stk::ITask.

Definition at line 129 of file stk_helper.h.

{ STK_ASSERT(false); (void)duration; }

Run()

template<int32_t _Weight, EAccessMode _AccessMode>

void stk::test::TaskMockW< _Weight, _AccessMode >::Run ( )

inlineprivatevirtual

Entry point of the user task.

Note

Called by the Kernel when the task is scheduled for execution. Implement this method with the task's main logic.

Warning

If Kernel is configured as KERNEL_STATIC, the body must contain an infinite loop.

void Run()
{
    while (true)
    {
        // task logic here
    }
}

Implements stk::ITask.

Definition at line 359 of file stktest.h.

{}

Member Data Documentation

m_stack

StackMemoryDef<_StackSize>::Type stk::TaskW< _Weight, _StackSize, _AccessMode >::m_stack

privateinherited

Stack memory region, 16-byte aligned.

Definition at line 162 of file stk_helper.h.

---

The documentation for this class was generated from the following file:

• stktest.h
