stk::StackMemoryWrapper< _StackSize > Class Template Reference

Adapts an externally-owned stack memory array to the IStackMemory interface. More...

#include <stk_helper.h>

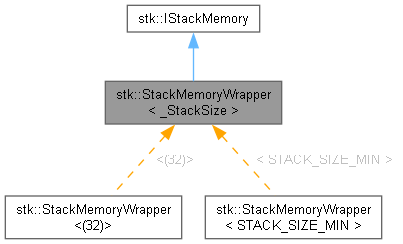

Inheritance diagram for stk::StackMemoryWrapper< _StackSize >:

Collaboration diagram for stk::StackMemoryWrapper< _StackSize >:

Public Types
typedef StackMemoryDef< _StackSize >::Type	MemoryType
	The concrete array type that this wrapper accepts, equivalent to StackMemoryDef<_StackSize>::Type.

Public Member Functions
	StackMemoryWrapper (MemoryType *stack)
	Construct a wrapper around an existing stack memory array.
	~StackMemoryWrapper ()
	Destructor.
Word *	GetStack () const
	Get pointer to the first element of the wrapped stack array.
size_t	GetStackSize () const
	Get number of elements in the wrapped stack array.
size_t	GetStackSizeBytes () const
	Get size of the wrapped stack array in bytes.

Private Attributes
MemoryType *	m_stack
	Pointer to the externally-owned stack memory array.

Detailed Description

template<size_t _StackSize>
class stk::StackMemoryWrapper< _StackSize >

Adapts an externally-owned stack memory array to the IStackMemory interface.

Note

Wrapper (Adapter) design pattern. Use when the stack memory is declared separately from the task object (e.g. in a linker section or shared buffer) and needs to be passed to the kernel via the IStackMemory interface.

Template Parameters

_StackSize

Stack size in elements of Word. Must be >= STACK_SIZE_MIN.

Definition at line 173 of file stk_helper.h.

Member Typedef Documentation

MemoryType

template<size_t _StackSize>

typedef StackMemoryDef<_StackSize>::Type stk::StackMemoryWrapper< _StackSize >::MemoryType

The concrete array type that this wrapper accepts, equivalent to StackMemoryDef<_StackSize>::Type.

Definition at line 179 of file stk_helper.h.

Constructor & Destructor Documentation

StackMemoryWrapper()

template<size_t _StackSize>

stk::StackMemoryWrapper< _StackSize >::StackMemoryWrapper ( MemoryType * stack )

inlineexplicit

Construct a wrapper around an existing stack memory array.

Parameters

[in]

stack

Pointer to the externally-owned memory array. Must remain valid for the lifetime of this wrapper and of any kernel task using it.

Note

_StackSize must be >= STACK_SIZE_MIN; enforced by a compile-time assertion.

Definition at line 186 of file stk_helper.h.

                                                   : m_stack(stack)
    {
        STK_STATIC_ASSERT(_StackSize >= STACK_SIZE_MIN);
    }

~StackMemoryWrapper()

template<size_t _StackSize>

stk::StackMemoryWrapper< _StackSize >::~StackMemoryWrapper ( )

inline

Destructor.

Note

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

Definition at line 194 of file stk_helper.h.

    {}

Member Function Documentation

GetStack()

template<size_t _StackSize>

Word * stk::StackMemoryWrapper< _StackSize >::GetStack ( ) const

inlinevirtual

Get pointer to the first element of the wrapped stack array.

Implements stk::IStackMemory.

Definition at line 199 of file stk_helper.h.

{ return (*m_stack); }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

GetStackSize()

template<size_t _StackSize>

size_t stk::StackMemoryWrapper< _StackSize >::GetStackSize ( ) const

inlinevirtual

Get number of elements in the wrapped stack array.

Implements stk::IStackMemory.

Definition at line 203 of file stk_helper.h.

{ return _StackSize; }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

GetStackSizeBytes()

template<size_t _StackSize>

size_t stk::StackMemoryWrapper< _StackSize >::GetStackSizeBytes ( ) const

inlinevirtual

Get size of the wrapped stack array in bytes.

Implements stk::IStackMemory.

Definition at line 207 of file stk_helper.h.

{ return _StackSize * sizeof(Word); }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

Member Data Documentation

m_stack

template<size_t _StackSize>

MemoryType* stk::StackMemoryWrapper< _StackSize >::m_stack

private

Pointer to the externally-owned stack memory array.

Definition at line 210 of file stk_helper.h.

---

The documentation for this class was generated from the following file:

• stk_helper.h
