stk::time::TimerHost::Timer Class Reference

Abstract base class for a timer managed by TimerHost. More...

#include <stk_time_timer.h>

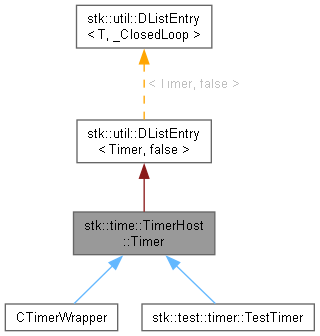

Inheritance diagram for stk::time::TimerHost::Timer:

Collaboration diagram for stk::time::TimerHost::Timer:

Public Member Functions
	Timer ()
	~Timer ()
	Destructor.
virtual void	OnExpired (TimerHost *host)=0
bool	IsActive () const
Ticks	GetDeadline () const
Ticks	GetTimestamp () const
uint32_t	GetPeriod () const
uint32_t	GetRemainingTime () const
	Get remaining ticks until the timer next expires.

Private Types
typedef DListEntry< Timer, _ClosedLoop >	DLEntryType
	Convenience alias for this entry type. Used to avoid repeating the full template spelling.
typedef DListHead< Timer, _ClosedLoop >	DLHeadType
	Convenience alias for the corresponding list head type.

Private Member Functions
	STK_NONCOPYABLE_CLASS (Timer)
DLHeadType *	GetHead () const
	Get the list head this entry currently belongs to.
DLEntryType *	GetNext () const
	Get the next entry in the list.
DLEntryType *	GetPrev () const
	Get the previous entry in the list.
bool	IsLinked () const
	Check whether this entry is currently a member of any list.
	operator Timer * ()
	Implicit conversion to a mutable pointer to the host object (T).
	operator const Timer * () const
	Implicit conversion to a const pointer to the host object (T).
void	Link (DLHeadType *head, DLEntryType *next, DLEntryType *prev)
	Wire this entry into a list between prev and next.
void	Unlink ()
	Remove this entry from its current list.

Private Attributes
Ticks	m_deadline
	absolute expiration time (ticks)
Ticks	m_timestamp
	time at which timer expired (ticks), updated by TimerHost
uint32_t	m_period
	reload period in ticks (0 = one-shot)
volatile bool	m_active
	true if active
volatile bool	m_pending
	true if pending to be handled
DLHeadType *	m_head
	Owning list head, or NULL when the entry is not linked.
DLEntryType *	m_next
	Next entry in the list, or NULL (open list boundary) / first entry (closed loop).
DLEntryType *	m_prev
	Previous entry in the list, or NULL (open list boundary) / last entry (closed loop).

Friends
class	TimerHost

Detailed Description

Abstract base class for a timer managed by TimerHost.

To implement a concrete timer, inherit from this class and override OnExpired(). The timer instance must outlive the TimerHost or be explicitly stopped before destruction, as TimerHost holds a non-owning pointer to each active timer.

Each Timer instance may be registered with at most one TimerHost at a time.

See also

TimerHost::Start, TimerHost::Stop, TimerHost::Reset, TimerHost::Restart

Definition at line 137 of file stk_time_timer.h.

Member Typedef Documentation

DLEntryType

typedef DListEntry<Timer, _ClosedLoop> stk::util::DListEntry< Timer, _ClosedLoop >::DLEntryType

inherited

Convenience alias for this entry type. Used to avoid repeating the full template spelling.

Definition at line 70 of file stk_linked_list.h.

DLHeadType

typedef DListHead<Timer, _ClosedLoop> stk::util::DListEntry< Timer, _ClosedLoop >::DLHeadType

inherited

Convenience alias for the corresponding list head type.

Definition at line 75 of file stk_linked_list.h.

Constructor & Destructor Documentation

Timer()

stk::time::TimerHost::Timer::Timer ( )

inline

Definition at line 142 of file stk_time_timer.h.

                : m_deadline(0), m_timestamp(0), m_period(0), m_active(false), m_pending(false)
        {}

References m_active, m_deadline, m_pending, m_period, and m_timestamp.

Referenced by STK_NONCOPYABLE_CLASS().

Here is the caller graph for this function:

~Timer()

stk::time::TimerHost::Timer::~Timer ( )

inline

Destructor.

Note

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

Definition at line 148 of file stk_time_timer.h.

        {}

Member Function Documentation

GetDeadline()

Ticks stk::time::TimerHost::Timer::GetDeadline ( ) const

inline

Definition at line 154 of file stk_time_timer.h.

{ return m_deadline; }

References m_deadline.

Referenced by stk_timer_get_deadline().

Here is the caller graph for this function:

GetHead()

DLHeadType * stk::util::DListEntry< Timer, _ClosedLoop >::GetHead ( ) const

inlineinherited

Get the list head this entry currently belongs to.

Returns

Pointer to the owning DListHead, or NULL if the entry is not linked.

Definition at line 80 of file stk_linked_list.h.

{ return m_head; }

GetNext()

DLEntryType * stk::util::DListEntry< Timer, _ClosedLoop >::GetNext ( ) const

inlineinherited

Get the next entry in the list.

Returns

Pointer to the next DListEntry, or NULL if this is the last entry (open list) or the first entry (closed loop, where next wraps to first).

Note

In a closed loop (_ClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 88 of file stk_linked_list.h.

{ return m_next; }

GetPeriod()

uint32_t stk::time::TimerHost::Timer::GetPeriod ( ) const

inline

Definition at line 156 of file stk_time_timer.h.

{ return m_period; }

References m_period.

Referenced by stk_timer_get_period().

Here is the caller graph for this function:

GetPrev()

DLEntryType * stk::util::DListEntry< Timer, _ClosedLoop >::GetPrev ( ) const

inlineinherited

Get the previous entry in the list.

Returns

Pointer to the previous DListEntry, or NULL if this is the first entry (open list) or the last entry (closed loop, where prev wraps to last).

Note

In a closed loop (_ClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 96 of file stk_linked_list.h.

{ return m_prev; }

GetRemainingTime()

uint32_t stk::time::TimerHost::Timer::GetRemainingTime ( ) const

inline

Get remaining ticks until the timer next expires.

Returns

Ticks remaining, or 0 if already expired / not active.

Note

The value is advisory: it is computed from m_now (the last value written by the tick task) and may be up to one tick task wake cycle stale. If the deadline has already passed but not yet been processed, 0 is returned.

Definition at line 370 of file stk_time_timer.h.

{
    if (!m_active)
        return 0;

    // if deadline has passed but not yet been processed by the tick task,
    // remaining would be negative, result fits in uint32_t because delay and
    // period are uint32_t, so remaining time is bounded by uint32_t max
    Ticks remaining = m_deadline - GetTicks();
    return (remaining > 0 ? static_cast<uint32_t>(remaining) : 0);
}

References stk::GetTicks(), m_active, and m_deadline.

Referenced by stk_timer_get_remaining_time().

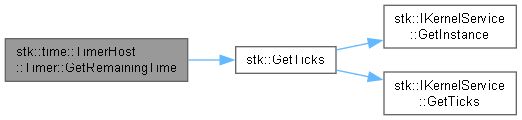

Here is the call graph for this function:

Here is the caller graph for this function:

GetTimestamp()

Ticks stk::time::TimerHost::Timer::GetTimestamp ( ) const

inline

Definition at line 155 of file stk_time_timer.h.

{ return m_timestamp; }

References m_timestamp.

Referenced by stk_timer_get_timestamp().

Here is the caller graph for this function:

IsActive()

bool stk::time::TimerHost::Timer::IsActive ( ) const

inline

Definition at line 153 of file stk_time_timer.h.

{ return m_active; }

References m_active.

Referenced by stk::test::timer::MultipleTimersTask< _AccessMode >::Run(), stk_timer_destroy(), and stk_timer_is_active().

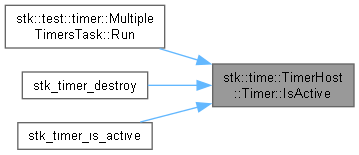

Here is the caller graph for this function:

IsLinked()

bool stk::util::DListEntry< Timer, _ClosedLoop >::IsLinked ( ) const

inlineinherited

Check whether this entry is currently a member of any list.

Returns

true if linked (m_head != NULL); false otherwise.

Definition at line 101 of file stk_linked_list.h.

{ return (GetHead() != nullptr); }

Link()

void stk::util::DListEntry< Timer, _ClosedLoop >::Link ( DLHeadType * head, DLEntryType * next, DLEntryType * prev )

inlineprivateinherited

Wire this entry into a list between prev and next.

Parameters

[in]	head	The owning DListHead. Stored as a back-pointer for IsLinked() and ownership checks.
[in]	next	The entry that will follow this one, or NULL if this becomes the last entry.
[in]	prev	The entry that will precede this one, or NULL if this becomes the first entry.

Note

Called exclusively by DListHead::Link(). Assumes the entry is not currently linked. Updates the neighbours' forward/back pointers to splice this entry in.

Definition at line 137 of file stk_linked_list.h.

    {
        m_head = head;
        m_next = next;
        m_prev = prev;

        if (m_prev != nullptr)
            m_prev->m_next = this;

        if (m_next != nullptr)
            m_next->m_prev = this;
    }

OnExpired()

virtual void stk::time::TimerHost::Timer::OnExpired ( TimerHost * host )

pure virtual

Implemented in CTimerWrapper, and stk::test::timer::TestTimer.

References TimerHost.

Referenced by stk::time::TimerHost::ProcessTimers().

Here is the call graph for this function:

Here is the caller graph for this function:

operator const Timer *()

stk::util::DListEntry< Timer, _ClosedLoop >::operator const Timer * ( ) const

inlineinherited

Implicit conversion to a const pointer to the host object (T).

Note

Safe because T must derive from DListEntry<T, _ClosedLoop>. Eliminates the need for explicit static_cast at call sites.

MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 115 of file stk_linked_list.h.

{ return static_cast<const T *>(this); }

operator Timer *()

stk::util::DListEntry< Timer, _ClosedLoop >::operator Timer* ( )

inlineinherited

Implicit conversion to a mutable pointer to the host object (T).

Note

Safe because T must derive from DListEntry<T, _ClosedLoop>. Eliminates the need for explicit static_cast at call sites.

MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 108 of file stk_linked_list.h.

{ return static_cast<T *>(this); }

STK_NONCOPYABLE_CLASS()

stk::time::TimerHost::Timer::STK_NONCOPYABLE_CLASS ( Timer )

private

References Timer().

Here is the call graph for this function:

Unlink()

void stk::util::DListEntry< Timer, _ClosedLoop >::Unlink ( )

inlineprivateinherited

Remove this entry from its current list.

Note

Called exclusively by DListHead::Unlink(). Patches the neighbours' pointers to bridge over this entry, then clears m_head, m_next, and m_prev to NULL so the entry is in a clean unlinked state.

Does not update DListHead::m_count or m_first / m_last — those are the responsibility of the calling DListHead::Unlink().

Definition at line 157 of file stk_linked_list.h.

    {
        if (m_prev != nullptr)
            m_prev->m_next = m_next;

        if (m_next != nullptr)
            m_next->m_prev = m_prev;

        m_head = nullptr;
        m_next = nullptr;
        m_prev = nullptr;
    }

Friends And Related Symbol Documentation

TimerHost

friend class TimerHost

friend

Definition at line 139 of file stk_time_timer.h.

References TimerHost.

Referenced by CTimerWrapper::OnExpired(), OnExpired(), and TimerHost.

Member Data Documentation

m_active

volatile bool stk::time::TimerHost::Timer::m_active

private

true if active

Definition at line 172 of file stk_time_timer.h.

Referenced by GetRemainingTime(), IsActive(), stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::Reset(), stk::time::TimerHost::SetPeriod(), stk::time::TimerHost::Start(), stk::time::TimerHost::Stop(), Timer(), and stk::time::TimerHost::UpdateTime().

m_deadline

Ticks stk::time::TimerHost::Timer::m_deadline

private

absolute expiration time (ticks)

Definition at line 169 of file stk_time_timer.h.

Referenced by GetDeadline(), GetRemainingTime(), stk::time::TimerHost::ProcessCommands(), Timer(), and stk::time::TimerHost::UpdateTime().

m_head

DLHeadType* stk::util::DListEntry< Timer, _ClosedLoop >::m_head

privateinherited

Owning list head, or NULL when the entry is not linked.

Definition at line 170 of file stk_linked_list.h.

m_next

DLEntryType* stk::util::DListEntry< Timer, _ClosedLoop >::m_next

privateinherited

Next entry in the list, or NULL (open list boundary) / first entry (closed loop).

Definition at line 171 of file stk_linked_list.h.

m_pending

volatile bool stk::time::TimerHost::Timer::m_pending

private

true if pending to be handled

Definition at line 173 of file stk_time_timer.h.

Referenced by stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::ProcessTimers(), Timer(), and stk::time::TimerHost::UpdateTime().

m_period

uint32_t stk::time::TimerHost::Timer::m_period

private

reload period in ticks (0 = one-shot)

Definition at line 171 of file stk_time_timer.h.

Referenced by GetPeriod(), stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::Reset(), stk::time::TimerHost::SetPeriod(), Timer(), and stk::time::TimerHost::UpdateTime().

m_prev

DLEntryType* stk::util::DListEntry< Timer, _ClosedLoop >::m_prev

privateinherited

Previous entry in the list, or NULL (open list boundary) / last entry (closed loop).

Definition at line 172 of file stk_linked_list.h.

m_timestamp

Ticks stk::time::TimerHost::Timer::m_timestamp

private

time at which timer expired (ticks), updated by TimerHost

Definition at line 170 of file stk_time_timer.h.

Referenced by GetTimestamp(), Timer(), and stk::time::TimerHost::UpdateTime().

---

The documentation for this class was generated from the following file:

• stk_time_timer.h
