stk::TaskW< _Weight, _StackSize, _AccessMode > Class Template Reference

Partial implementation of the user task with a compile-time scheduling weight. Use when the kernel is configured with SwitchStrategySmoothWeightedRoundRobin. More...

#include <stk_helper.h>

Inheritance diagram for stk::TaskW< _Weight, _StackSize, _AccessMode >:

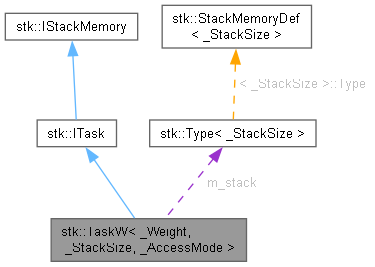

Collaboration diagram for stk::TaskW< _Weight, _StackSize, _AccessMode >:

Public Types
enum	{ STACK_SIZE = _StackSize }

Public Member Functions
Word *	GetStack () const
	Get pointer to the stack memory.
size_t	GetStackSize () const
	Get number of elements of the stack memory array.
size_t	GetStackSizeBytes () const
	Get size of the memory in bytes.
EAccessMode	GetAccessMode () const
	Get hardware access mode of the user task.
virtual void	OnDeadlineMissed (uint32_t duration)
	Hard Real-Time mode is unsupported for weighted tasks. Triggers an assertion if called.
virtual int32_t	GetWeight () const
	Returns the compile-time weight _Weight.
virtual TId	GetId () const
	Get object's own address as its Id. Unique per task instance, requires no manual assignment.
virtual const char *	GetTraceName () const
	Override in subclass to supply a name for SEGGER SystemView tracing. Returns NULL by default.
virtual void	Run ()=0
	Entry point of the user task.

Protected Member Functions
	TaskW (const TaskW &)=delete
TaskW &	operator= (const TaskW &)=delete
	TaskW ()
	Initializes task instance and zero-initializes its internal stack memory.
	~TaskW ()
	Destructor.

Private Attributes
StackMemoryDef< _StackSize >::Type	m_stack
	Stack memory region, 16-byte aligned.

Detailed Description

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>
class stk::TaskW< _Weight, _StackSize, _AccessMode >

Partial implementation of the user task with a compile-time scheduling weight. Use when the kernel is configured with SwitchStrategySmoothWeightedRoundRobin.

Template Parameters

_Weight	Static scheduling weight (positive, non-zero 24-bit integer). Higher values cause this task to receive proportionally more CPU time.
_StackSize	Stack size in elements of Word.
_AccessMode	Hardware access mode (ACCESS_USER or ACCESS_PRIVILEGED).

Note

Hard Real-Time mode (KERNEL_HRT) is not supported for weighted tasks. OnDeadlineMissed() will trigger an assertion if HRT scheduling is attempted.

See Task for full usage example and implementation guidance.

Definition at line 116 of file stk_helper.h.

Member Enumeration Documentation

anonymous enum

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

anonymous enum

Enumerator
STACK_SIZE

Definition at line 119 of file stk_helper.h.

{ STACK_SIZE = _StackSize };

Constructor & Destructor Documentation

TaskW() [1/2]

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

stk::TaskW< _Weight, _StackSize, _AccessMode >::TaskW ( const TaskW< _Weight, _StackSize, _AccessMode > & )

protecteddelete

Referenced by operator=().

Here is the caller graph for this function:

TaskW() [2/2]

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

stk::TaskW< _Weight, _StackSize, _AccessMode >::TaskW ( )

inlineprotected

Initializes task instance and zero-initializes its internal stack memory.

The constructor is protected to ensure that the Task class can only be instantiated through a derived subclass. It handles the allocation (if applicable) and zero-initialization of the m_stack member based on the _StackSize template parameter.

Definition at line 153 of file stk_helper.h.

: m_stack() {}

References m_stack.

~TaskW()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

stk::TaskW< _Weight, _StackSize, _AccessMode >::~TaskW ( )

inlineprotected

Destructor.

Note

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

Definition at line 158 of file stk_helper.h.

    {}

Member Function Documentation

GetAccessMode()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

EAccessMode stk::TaskW< _Weight, _StackSize, _AccessMode >::GetAccessMode ( ) const

inlinevirtual

Get hardware access mode of the user task.

Implements stk::ITask.

Definition at line 124 of file stk_helper.h.

{ return _AccessMode; }

GetId()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

virtual TId stk::TaskW< _Weight, _StackSize, _AccessMode >::GetId ( ) const

inlinevirtual

Get object's own address as its Id. Unique per task instance, requires no manual assignment.

Implements stk::ITask.

Definition at line 137 of file stk_helper.h.

{ return hw::PtrToWord(this); }

References stk::hw::PtrToWord().

Referenced by stk::test::TEST().

Here is the call graph for this function:

Here is the caller graph for this function:

GetStack()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

Word * stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStack ( ) const

inlinevirtual

Get pointer to the stack memory.

Implements stk::IStackMemory.

Definition at line 121 of file stk_helper.h.

{ return const_cast<Word *>(m_stack); }

References m_stack.

GetStackSize()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

size_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStackSize ( ) const

inlinevirtual

Get number of elements of the stack memory array.

Implements stk::IStackMemory.

Definition at line 122 of file stk_helper.h.

{ return _StackSize; }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

GetStackSizeBytes()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

size_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetStackSizeBytes ( ) const

inlinevirtual

Get size of the memory in bytes.

Implements stk::IStackMemory.

Definition at line 123 of file stk_helper.h.

{ return _StackSize * sizeof(Word); }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

GetTraceName()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

virtual const char * stk::TaskW< _Weight, _StackSize, _AccessMode >::GetTraceName ( ) const

inlinevirtual

Override in subclass to supply a name for SEGGER SystemView tracing. Returns NULL by default.

Implements stk::ITask.

Definition at line 141 of file stk_helper.h.

{ return nullptr; }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

GetWeight()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

virtual int32_t stk::TaskW< _Weight, _StackSize, _AccessMode >::GetWeight ( ) const

inlinevirtual

Returns the compile-time weight _Weight.

Implements stk::ITask.

Definition at line 133 of file stk_helper.h.

{ return _Weight; }

Referenced by stk::test::TEST().

Here is the caller graph for this function:

OnDeadlineMissed()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

virtual void stk::TaskW< _Weight, _StackSize, _AccessMode >::OnDeadlineMissed ( uint32_t duration )

inlinevirtual

Hard Real-Time mode is unsupported for weighted tasks. Triggers an assertion if called.

Warning

Do not use TaskW with KERNEL_HRT. Use Task instead.

Implements stk::ITask.

Definition at line 129 of file stk_helper.h.

{ STK_ASSERT(false); (void)duration; }

References STK_ASSERT.

Referenced by stk::test::TEST().

Here is the caller graph for this function:

operator=()

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

TaskW & stk::TaskW< _Weight, _StackSize, _AccessMode >::operator= ( const TaskW< _Weight, _StackSize, _AccessMode > & )

protecteddelete

References TaskW().

Here is the call graph for this function:

Run()

virtual void stk::ITask::Run ( )

pure virtualinherited

Entry point of the user task.

Note

Called by the Kernel when the task is scheduled for execution. Implement this method with the task's main logic.

Warning

If Kernel is configured as KERNEL_STATIC, the body must contain an infinite loop.

void Run()
{
    while (true)
    {
        // task logic here
    }
}

Implemented in stk::test::chain::TestTask< _AccessMode >, stk::test::chain::TestTask< _AccessMode >, stk::test::condvar::MutexReacquiredTask< _AccessMode >, stk::test::condvar::NotifyAllWakesTask< _AccessMode >, stk::test::condvar::NotifyOneOrderTask< _AccessMode >, stk::test::condvar::NotifyOneWakesTask< _AccessMode >, stk::test::condvar::NoWaitTimeoutTask< _AccessMode >, stk::test::condvar::PredicateLoopTask< _AccessMode >, stk::test::condvar::StressTestTask< _AccessMode >, stk::test::condvar::TimeoutExpiresTask< _AccessMode >, stk::test::event::AutoResetBasicTask< _AccessMode >, stk::test::event::InitialStateTask< _AccessMode >, stk::test::event::ManualResetBasicTask< _AccessMode >, stk::test::event::PulseAutoResetTask< _AccessMode >, stk::test::event::PulseManualResetTask< _AccessMode >, stk::test::event::ResetManualTask< _AccessMode >, stk::test::event::TimeoutWaitTask< _AccessMode >, stk::test::event::TryWaitTask< _AccessMode >, stk::test::eventflags::ClearTask< _AccessMode >, stk::test::eventflags::GetTask< _AccessMode >, stk::test::eventflags::InitialFlagsTask< _AccessMode >, stk::test::eventflags::MultiWaiterAllTask< _AccessMode >, stk::test::eventflags::MultiWaiterAnyTask< _AccessMode >, stk::test::eventflags::NoClearTask< _AccessMode >, stk::test::eventflags::SetWaitAllTask< _AccessMode >, stk::test::eventflags::SetWaitAnyTask< _AccessMode >, stk::test::eventflags::TimeoutTask< _AccessMode >, stk::test::eventflags::TryWaitTask< _AccessMode >, stk::test::hrt::TestTask< _AccessMode >, stk::test::mutex::BasicLockUnlockTask< _AccessMode >, stk::test::mutex::FIFOOrderTask< _AccessMode >, stk::test::mutex::InterTaskCoordinationTask< _AccessMode >, stk::test::mutex::RecursiveDepthTask< _AccessMode >, stk::test::mutex::RecursiveLockTask< _AccessMode >, stk::test::mutex::StressTestTask< _AccessMode >, stk::test::mutex::TimedLockTask< _AccessMode >, stk::test::mutex::TryLockTask< _AccessMode >, stk::test::pipe::BasicWriteReadTask< _AccessMode >, stk::test::pipe::BulkWriteReadTask< _AccessMode >, stk::test::pipe::GetSizeIsEmptyTask< _AccessMode >, stk::test::pipe::MultiProducerConsumerTask< _AccessMode >, stk::test::pipe::ReadBlocksWhenEmptyTask< _AccessMode >, stk::test::pipe::StressTestTask< _AccessMode >, stk::test::pipe::TimeoutTask< _AccessMode >, stk::test::pipe::WriteBlocksWhenFullTask< _AccessMode >, stk::test::rwmutex::ConcurrentReadersTask< _AccessMode >, stk::test::rwmutex::ReaderWriterAlternationTask< _AccessMode >, stk::test::rwmutex::ReadUnlockWakesWriterTask< _AccessMode >, stk::test::rwmutex::StressTestTask< _AccessMode >, stk::test::rwmutex::TimedReadLockTask< _AccessMode >, stk::test::rwmutex::TimedWriteLockTask< _AccessMode >, stk::test::rwmutex::TryReadLockWhileWriterTask< _AccessMode >, stk::test::rwmutex::WriterExclusivityTask< _AccessMode >, stk::test::rwmutex::WriterPriorityTask< _AccessMode >, stk::test::rwmutex::WriterStarvationTask< _AccessMode >, stk::test::semaphore::BasicSignalWaitTask< _AccessMode >, stk::test::semaphore::BoundedBufferTask< _AccessMode >, stk::test::semaphore::FIFOOrderTask< _AccessMode >, stk::test::semaphore::InitialCountTask< _AccessMode >, stk::test::semaphore::SignalBeforeWaitTask< _AccessMode >, stk::test::semaphore::StressTestTask< _AccessMode >, stk::test::semaphore::TimeoutWaitTask< _AccessMode >, stk::test::semaphore::ZeroTimeoutTask< _AccessMode >, stk::test::sleep::TestTask< _AccessMode >, stk::test::spinlock::MutualExclusionTask< _AccessMode >, stk::test::spinlock::RecursiveLockTask< _AccessMode >, stk::test::spinlock::RecursiveTryLockTask< _AccessMode >, stk::test::spinlock::StressTestTask< _AccessMode >, stk::test::spinlock::TryLockContendedTask< _AccessMode >, stk::test::spinlock::TryLockFreeTask< _AccessMode >, stk::test::spinlock::UnlockTransferTask< _AccessMode >, stk::test::spinlock::YieldUnderContentionTask< _AccessMode >, stk::test::switch_::TestTask< _AccessMode >, stk::test::TaskMock< _AccessMode >, stk::test::TaskMock< ACCESS_USER >, stk::test::TaskMockW< _Weight, _AccessMode >, stk::test::timer::MultipleTimersTask< _AccessMode >, stk::test::timer::OneShotTimerTask< _AccessMode >, stk::test::timer::PeriodicTimerTask< _AccessMode >, stk::test::timer::ResetPeriodicTimerTask< _AccessMode >, stk::test::timer::RestartTimerTask< _AccessMode >, stk::test::timer::SetPeriodTask< _AccessMode >, stk::test::timer::StartOrResetTask< _AccessMode >, stk::test::timer::StopTimerTask< _AccessMode >, stk::test::timer::StressTestTask< _AccessMode >, stk::time::TimerHost::TimerWorkerTask, and TaskWrapper.

Member Data Documentation

m_stack

template<int32_t _Weight, size_t _StackSize, EAccessMode _AccessMode>

StackMemoryDef<_StackSize>::Type stk::TaskW< _Weight, _StackSize, _AccessMode >::m_stack

private

Stack memory region, 16-byte aligned.

Definition at line 162 of file stk_helper.h.

Referenced by GetStack(), and TaskW().

---

The documentation for this class was generated from the following file:

• stk_helper.h
